NBPDANN100PGUNV

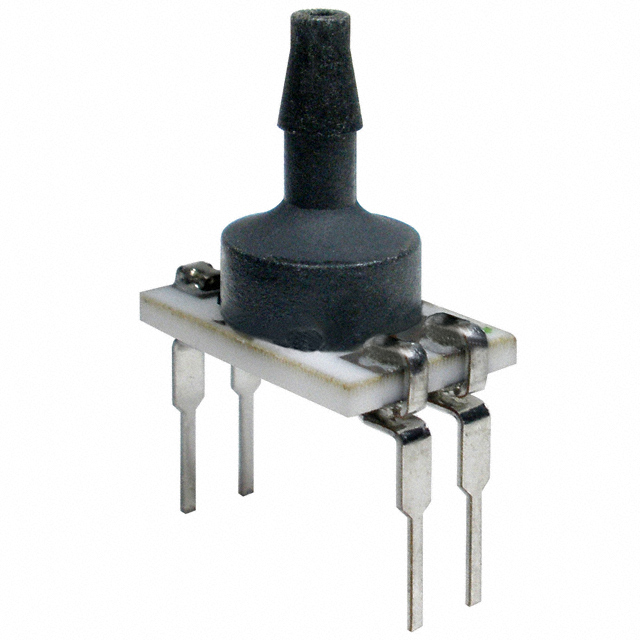

lmages are for reference only.NBPDANN100PGUNV
SENSOR 100PSIG 0.08" .086V
Datasheet4-DIP (0.453", 11.50mm), Top Port
65,695 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 100PSI (689.48kPa) Vented Gauge Male - 0.08" (1.91mm) Tube 0 mV ~ 86 mV (5V) 4-DIP (0.453", 11.50mm), Top Port
NBPDANN100PGUNV
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | NBP |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | - |
| Applications | Board Mount |
| Pressure Type | Vented Gauge |
| Operating Pressure | 100PSI (689.48kPa) |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 86 mV (5V) |
| Accuracy | ±0.25% |
| Voltage - Supply | 1.8V ~ 12V |
| Port Size | Male - 0.08" (1.91mm) Tube |
| Port Style | Barbed |
| Features | - |
| Termination Style | PC Pin |
| Maximum Pressure | 240PSI (1654.74kPa) |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | 4-DIP (0.453", 11.50mm), Top Port |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | NBPDANN100PAUNV | NBPDANN015PGUNV | NBPDANN030PAUNV | NBPDANN030PGUNV |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | |
| Description | SENSOR 100PSIA 0.08" .086V | BASIC MODEL PRESSURE SENSOR | SENSOR 30PSIA 0.08" .105V | SENSOR 30PSIG 0.08" .105V |
| Series | NBP | * | NBP | NBP |
| Packaging | Bulk | Bulk | Bulk | Bulk |
