NCP1616A2DR2G
lmages are for reference only.Payment Methods
Delivery Services
PFC IC Current Controlled Frequency Foldback (CCFF), Critical Conduction (CRM) 26kHz 9-SOIC
NCP1616A2DR2G
| Category | Integrated Circuits (ICs) - Power Management PMIC - PFC Power Factor Correction |
| Manufacturer | onsemi |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mode | Current Controlled Frequency Foldback (CCFF), Critical Conduction (CRM) |
| Frequency - Switching | 26kHz |
| Current - Startup | 12 mA |
| Voltage - Supply | 9.5V ~ 28V |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-SOP (0.154", 3.90mm Width), 9 Leads |
| Supplier Device Package | 9-SOIC |
| Base Product Number | NCP1616 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

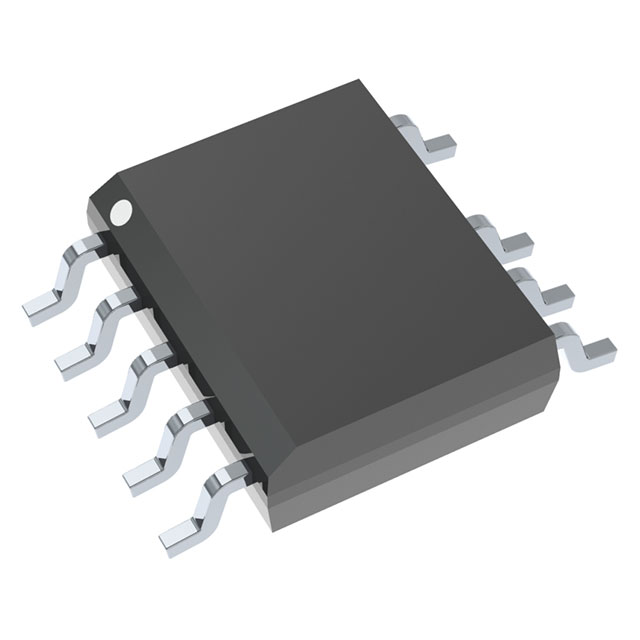

| Part Number | NCP1616A1DR2G | NCP1622BCCSNT1G | NCP1606ADR2G | NCP1653P |
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | IC PFC CTLR CCFF/CRM 26KHZ 9SOIC | IC PFC CTRLR CRM 6TSOP | IC PFC CTRLR CRM 8SOIC | IC PFC CTRLR CCM 110KHZ 8DIP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
