NCS12D1205C

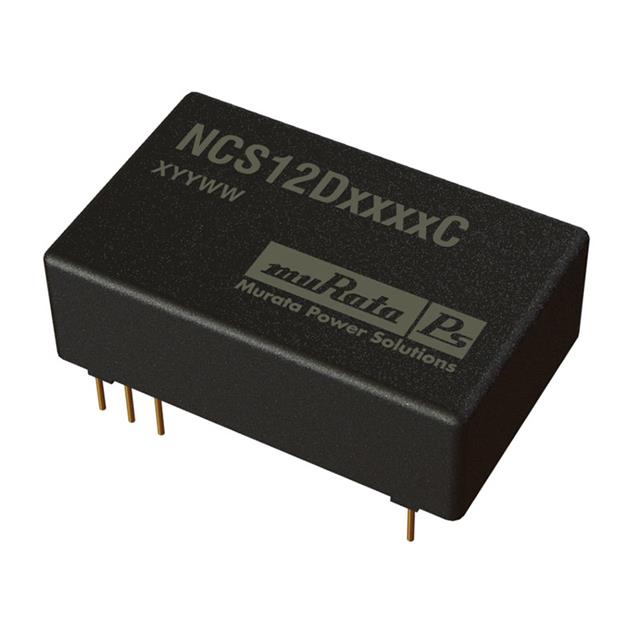

lmages are for reference only.NCS12D1205C
DC DC CONVERTER +/-5V 12W
Datasheet24-DIP Module, 9 Leads
21,761 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 5V -5V 1.2A, 1.2A 9V - 36V Input
NCS12D1205C
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | NCS12 (12W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | -5V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1.2A, 1.2A |
| Power (Watts) | 12 W |
| Applications | ITE (Commercial) |
| Features | OTP, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 81.5% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 24-DIP Module, 9 Leads |
| Size / Dimension | 1.26" L x 0.79" W x 0.41" H (32.0mm x 20.0mm x 10.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | NCS12D |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
 |
 |
 |
| Part Number | NCS12D1212C | NCS12D1215C | NCS12D4805C | NCS12D4812C |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER +/-12V 12W | DC DC CONVERTER +/-15V 12W | DC DC CONVERTER +/-5V 12W | DC DC CONVERTER +/-12V 12W |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| Packaging | Tube | Tube | Tube | Tube |
