Product CatalogPart Number
NCV59801CMTWADJTAG
Manufacturer
onsemiDescription
LDO, 1A, AUTOMOTIVE, LOW NOISE,
Datasheet
DatasheetPackage
6-WDFN Exposed Pad
In Stock
83,267 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
NCV59801CMTWADJTAG
NCV59801CMTWADJTAG
lmages are for reference only.Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Adjustable 1 Output 1A 6-WDFNW (2x2)
Quick Inquiry
NCV59801CMTWADJTAG
Specifications
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | onsemi |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 5V |
| Voltage Dropout (Max) | 0.407V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 55 µA |
| PSRR | - |
| Control Features | Enable, Soft Start |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | 150°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WDFNW (2x2) |
| Base Product Number | - |
| Current - Supply (Max) | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

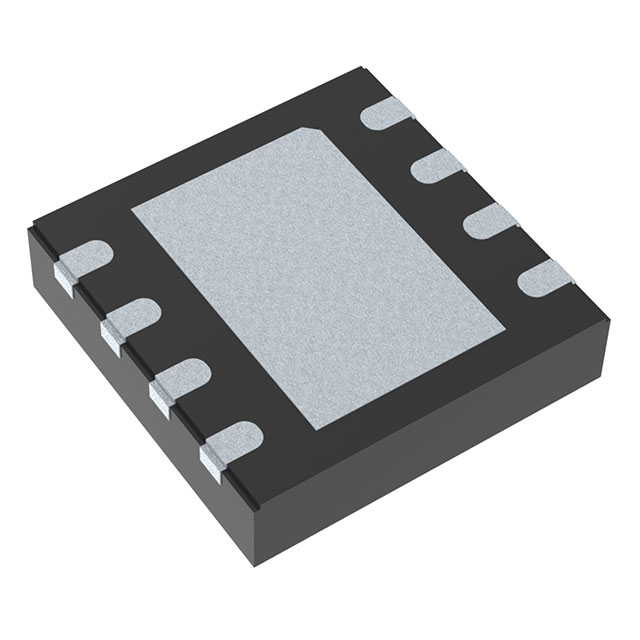

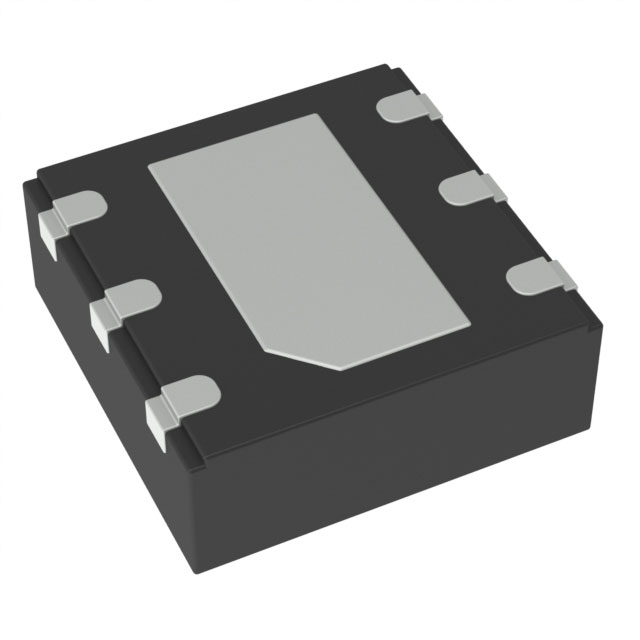

| Part Number | NCV59801CMTW120TAG | NCV59801CML120TCG | NCV59801CML180TCG | NCV59801CML330TCG |
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LDO, 1A, AUTOMOTIVE, LOW NOISE, | LDO, 1A, AUTOMOTIVE, LOW NOISE, | LDO, 1A, AUTOMOTIVE, LOW NOISE, | LDO, 1A, AUTOMOTIVE, LOW NOISE, |
| Series | onsemi | onsemi | onsemi | onsemi |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
NCV59151DS18R4G
onsemi
NCV59151DS25R4G
onsemi
NCV59151DS28R4G
onsemi
NCV59151DS30R4G
onsemi
NCV59151DS33R4G
onsemi
NCV59151DS50R4G
onsemi
NCV59151MN18TYG
onsemi

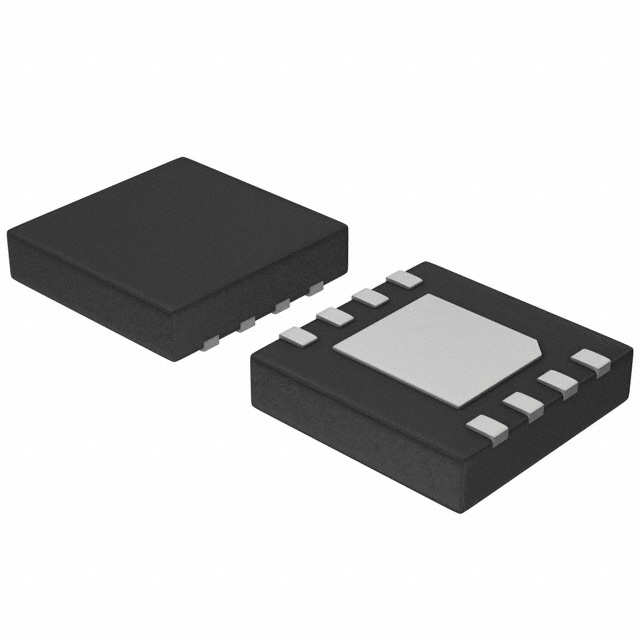

NCV59151MN25TYG
onsemi
NCV59151MN28TYG
onsemi
NCV59151MN30TYG
onsemi
NCV59151MN33TYG
onsemi
NCV59151MN50TYG
onsemi
NCV59152DSADJR4G
onsemi
NCV59152MNADJTYG
onsemi

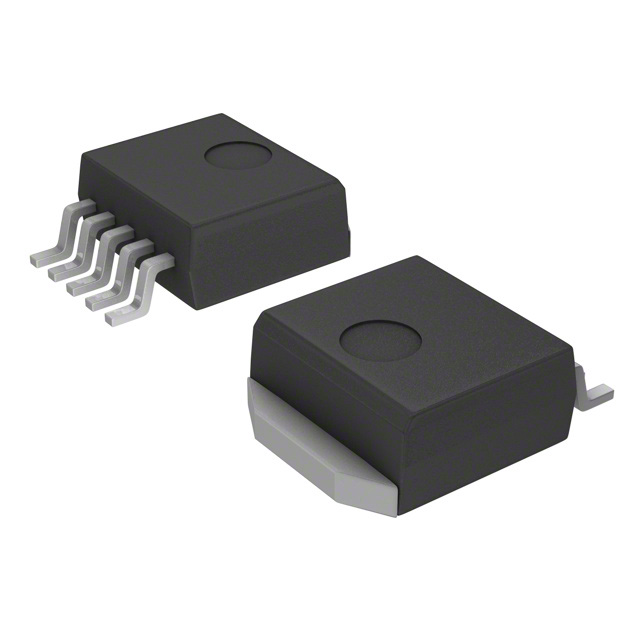

NCV59301DS18R4G
