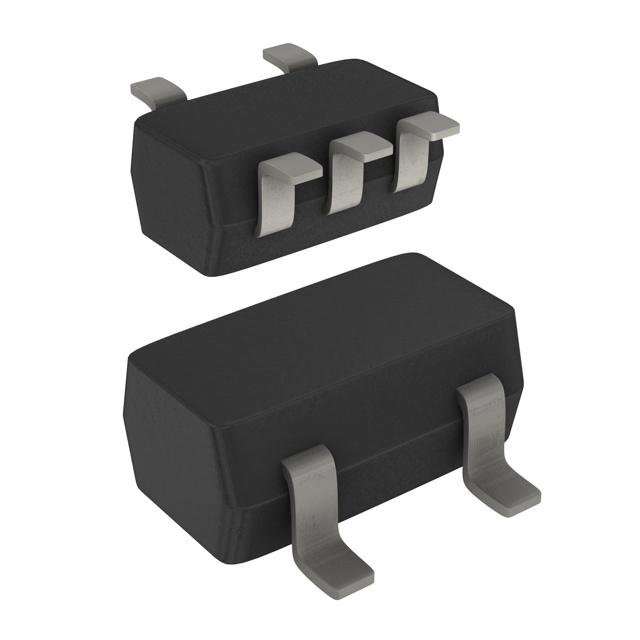

NCX2200GW,125
lmages are for reference only.NCX2200GW,125
Comparator, 30000uV Offset-Max,
Datasheet5-TSSOP, SC-70-5, SOT-353
77,621 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Comparator General Purpose Complementary, Rail-to-Rail 5-TSSOP
NCX2200GW,125
| Category | Integrated Circuits (ICs) - Linear - Comparators |
| Manufacturer | NXP Semiconductors |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Type | General Purpose |
| Number of Elements | 1 |
| Output Type | Complementary, Rail-to-Rail |
| Voltage - Supply, Single/Dual (±) | 1.3V ~ 5.5V |
| Voltage - Input Offset (Max) | 30mV @ 5.5V |
| Current - Input Bias (Max) | 1pA @ 5.5V |
| Current - Output (Typ) | 68mA @ 5.5V |
| Current - Quiescent (Max) | 9µA |
| CMRR, PSRR (Typ) | 70dB CMRR, 80dB PSRR |
| Propagation Delay (Max) | 800ns (Typ) |
| Hysteresis | 20mV |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 5-TSSOP |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

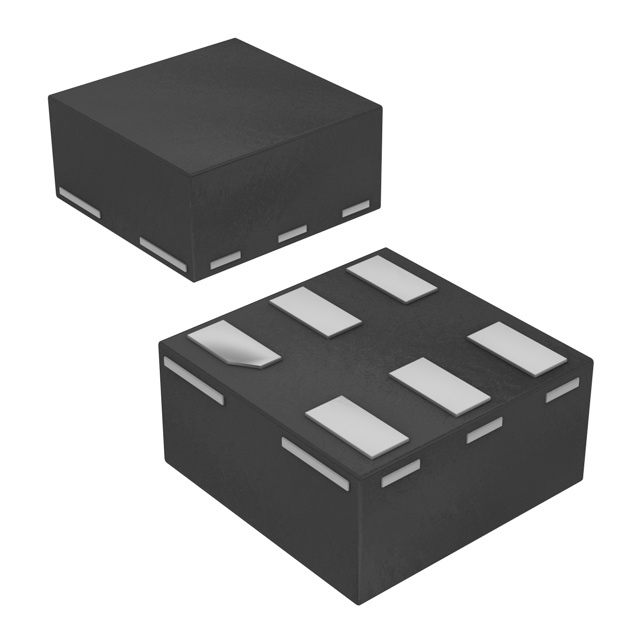

| Part Number | NCX2200GW,125 | NCX2200GF3,132 | NCX2200GM,115 | NCX2200GM,132 |
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC COMPARATOR 1 GEN PUR 5TSSOP | IC COMPARATOR 1 GEN PUR 6XSON | IC COMPARATOR 1 GEN PUR 6XSON | IC COMPARATOR 1 GEN PUR 6XSON |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
