ND110-SM02-M

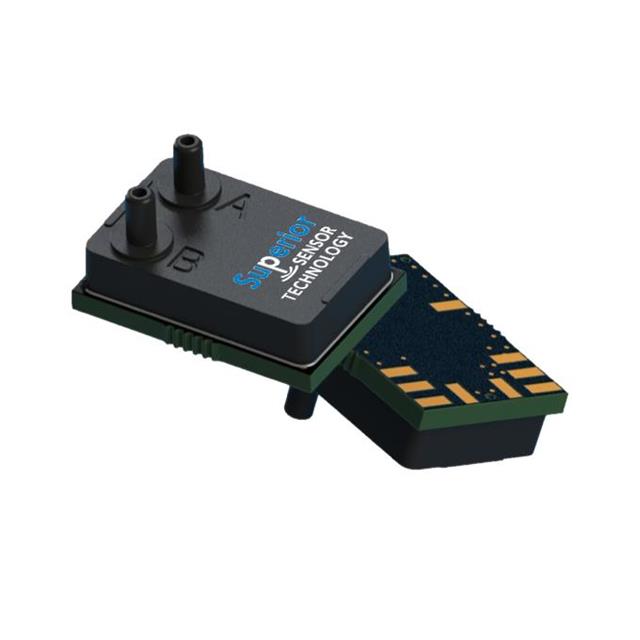

lmages are for reference only.ND110-SM02-M
SENSOR 0.36PSID 0.08" 16BIT
Datasheet11-SMD, No Lead, Top Port
98,896 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 0.02PSI ~ 0.36PSI (0.13kPa ~ 2.5kPa) Differential Male - 0.08" (2.13mm) Tube, Dual 16 b 11-SMD, No Lead, Top Port
ND110-SM02-M
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Superior Sensor Technology, Inc. |
| Series | ND |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | - |
| Applications | Industrial Automation |
| Pressure Type | Differential |
| Operating Pressure | 0.02PSI ~ 0.36PSI (0.13kPa ~ 2.5kPa) |
| Output Type | I2C, SPI |
| Output | 16 b |
| Accuracy | ±0.05% |
| Voltage - Supply | 3.5V ~ 2.8V |
| Port Size | Male - 0.08" (2.13mm) Tube, Dual |
| Port Style | Barbless |
| Features | Temperature Compensated |
| Termination Style | SMD (SMT) Tab |
| Maximum Pressure | 1.45PSI (9.96kPa) |
| Operating Temperature | -20°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 11-SMD, No Lead, Top Port |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |
| Part Number | ND110-SM02-C | ND110-SM02-C | ND110-SM02-M | ND110-SM02-Q |
| Manufacturer | Superior Sensor Technology, Inc. | Superior Sensor Technology, Inc. | Superior Sensor Technology, Inc. | Superior Sensor Technology, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SENSOR 0.36PSID 0.08" 16BIT | SENSOR 0.36PSID 0.08" 16BIT | SENSOR 0.36PSID 0.08" 16BIT | SENSOR 0.36PSID 0.08" 16BIT |
| Series | ND | ND | ND | ND |
| Packaging | Strip | Strip | Tray | Tape & Reel (TR)-->Cut Tape (CT) |
