Product CatalogPart Number
NDSH10120C-F155
Manufacturer
onsemiDescription
SIC DIODE GEN2.0 1200V TO247-2L
Datasheet
DatasheetPackage
TO-247-2
In Stock
97,348 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
NDSH10120C-F155
NDSH10120C-F155
lmages are for reference only.Payment Methods
Delivery Services
Diode 1200 V 12A Through Hole TO-247-2
Quick Inquiry
NDSH10120C-F155
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | onsemi |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Technology | SiC (Silicon Carbide) Schottky |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Current - Average Rectified (Io) | 12A |
| Voltage - Forward (Vf) (Max) @ If | 1.75 V @ 10 A |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Current - Reverse Leakage @ Vr | 200 µA @ 1200 V |
| Capacitance @ Vr, F | 680pF @ 1V, 100kHz |
| Mounting Type | Through Hole |
| Package / Case | TO-247-2 |
| Supplier Device Package | TO-247-2 |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

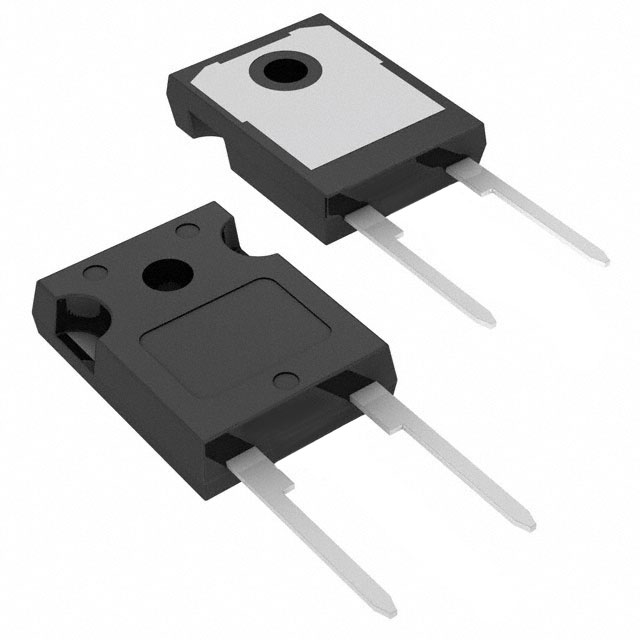

| Part Number | NDSH10170A | VS-HFA25PB60-N3 | RS07K-GS18 | S5M-M3/9AT |
| Manufacturer | onsemi | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE SIL CARB 1.7KV 16A TO247-2 | DIODE GP 600V 25A TO247AC | DIODE GP 800V 500MA DO219AB | DIODE GEN PURP 1KV 5A DO214AB |
| Series | - | HEXFRED® | - | - |
| Packaging | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
