NJM13404D#
lmages are for reference only.NJM13404D#
IC OPAMP GP 2 CIRCUIT 8DIP
Datasheet8-DIP (0.300", 7.62mm)
26,600 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Amplifier 2 Circuit 8-DIP
NJM13404D#
| Category | Integrated Circuits (ICs) - Linear - Amplifiers |
| Manufacturer | Nisshinbo Micro Devices Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Amplifier Type | General Purpose |
| Number of Circuits | 2 |
| Output Type | - |
| Slew Rate | 1.2V/µs |
| Gain Bandwidth Product | 2 MHz |
| Current - Input Bias | 25 nA |
| Voltage - Input Offset | 500 µV |
| Current - Supply | 2mA |
| Voltage - Supply Span (Min) | 2 V |
| Voltage - Supply Span (Max) | 14 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
| Base Product Number | NJM13404 |
| Current - Output / Channel | 35 mA |
| -3db Bandwidth | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|

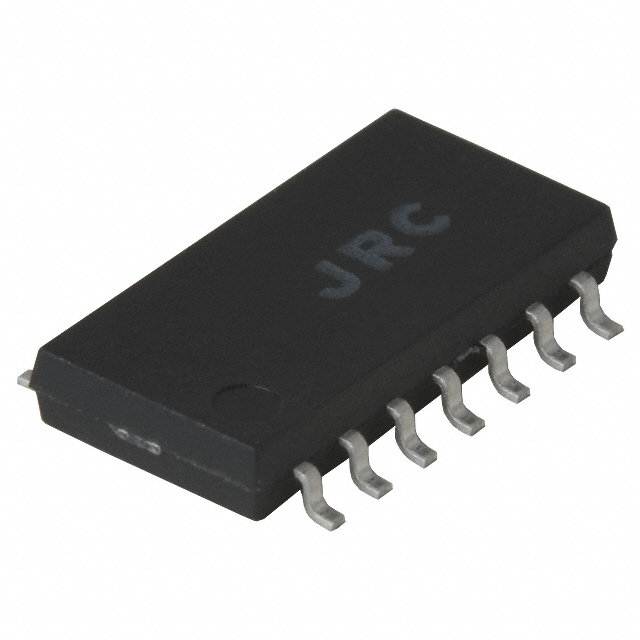

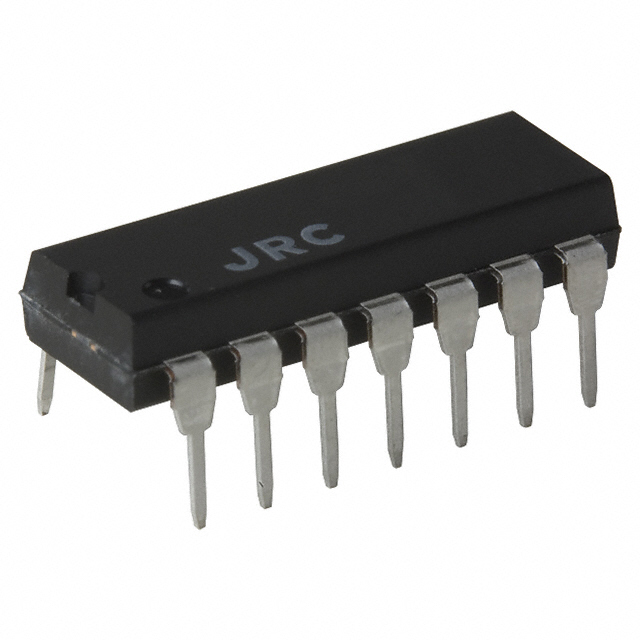

| Part Number | NJM13404D | NJM13403D1 | NJM13403M | NJM13404L |
| Manufacturer | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. |
| RoHS Status | RoHS non-compliant | RoHS Compliant | RoHS Compliant | |
| Description | IC OPAMP GP 2 CIRCUIT 8DIP | IC OPAMP GP 4 CIRCUIT 14DIP | IC OPAMP GP 4 CIRCUIT 14DMP | IC OPAMP |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Bulk |
