NLC453232T-3R3K
lmages are for reference only.NLC453232T-3R3K
FIXED IND 3.3UH 750MA 220MOHM SM
Datasheet1812 (4532 Metric)
33,582 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3.3 µH Unshielded Drum Core, Wirewound Inductor 750 mA 220mOhm Max 1812 (4532 Metric)
NLC453232T-3R3K
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | TDK Corporation |
| Series | NLC |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS non-compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 3.3 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 750 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 220mOhm Max |
| Q @ Freq | 10 @ 7.96MHz |
| Frequency - Self Resonant | 45MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 7.96 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric) |
| Supplier Device Package | 1812 |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | 0.134" (3.40mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

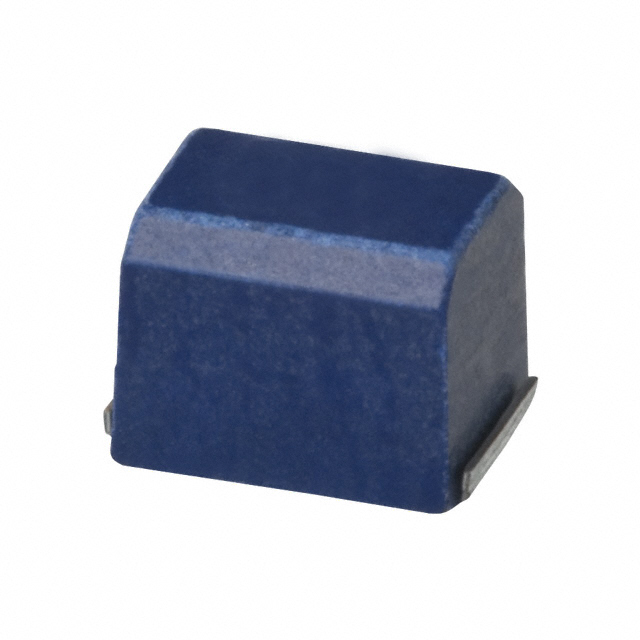

| Part Number | NLC453232T-3R3K-PF | NLC453232T-330K | NLC453232T-330K-PF | NLC453232T-331K |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | FIXED IND 3.3UH 750MA 220MOHM SM | FIXED IND 33UH 300MA 1.4 OHM SMD | FIXED IND 33UH 300MA 1.4 OHM SMD | FIXED IND 330UH 90MA 13 OHM SMD |
| Series | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
