NNCD6.2LG-T1-A
lmages are for reference only.Payment Methods
Delivery Services
Clamp Ipp Tvs Diode Surface Mount SC-59
NNCD6.2LG-T1-A
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Renesas |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Type | Steering (Rail to Rail) |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 3V (Max) |
| Voltage - Breakdown (Min) | 5.7V |
| Voltage - Clamping (Max) @ Ipp | - |
| Current - Peak Pulse (10/1000µs) | - |
| Power - Peak Pulse | 2W |
| Power Line Protection | No |
| Applications | Telecom, USB |
| Capacitance @ Frequency | 8pF @ 1MHz |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SC-59 |
| Base Product Number | - |
| Unidirectional Channels | 4 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
-T1B-A.jpg "NNCD10F(0)-T1B-A") |
| Part Number | NNCD6.2LG(1)-T1-A | NNCD10C-T1-A | NNCD10D-T1-AT | NNCD10F(0)-T1B-A |
| Manufacturer | Renesas | Renesas | Renesas | Renesas |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | NNCD6.2LG(1)-T1-A - LOW CAPACITA | NNCD10C - ZENER DIODES FOR SURGE | NNCD10D-T1-AT - ELECTROSTATIC DI | NNCD10F - ZENER DIODES FOR SURGE |
| Series | Renesas | Renesas | Renesas | Renesas |
| Packaging | Bulk | Bulk | Bulk | Bulk |
Recommended Products

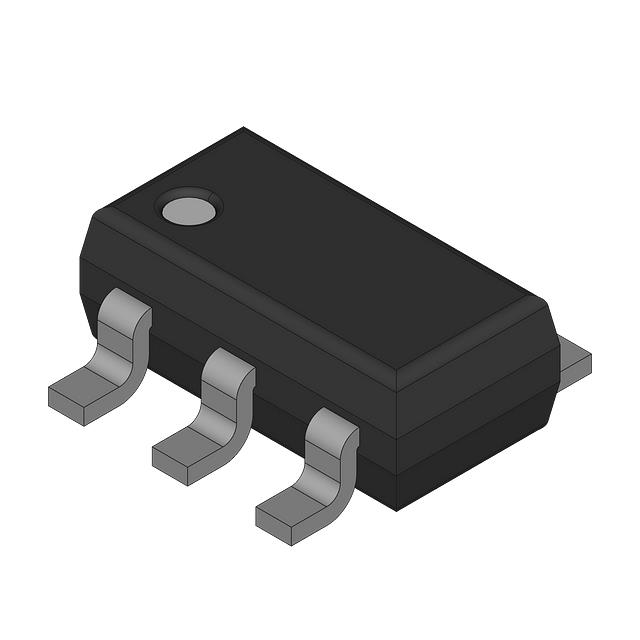

-T1-A.jpg "NNCD6.2G(0)-T1-A")
