NR1600GK250BE4S

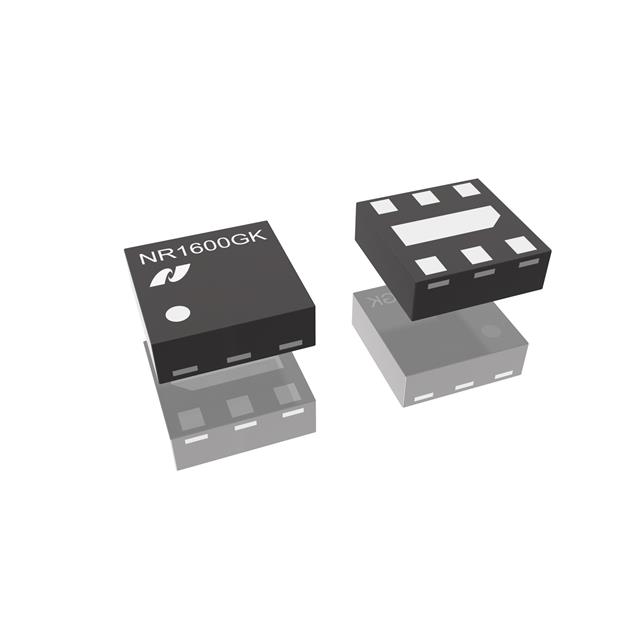

lmages are for reference only.NR1600GK250BE4S
500MA LOW DROPOUT VOLTAGE REGULA
Datasheet8-XFDFN Exposed Pad
28,903 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA DFN1212-6-GK
NR1600GK250BE4S
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Nisshinbo Micro Devices Inc. |
| Series | NR1641 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.3V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 125 µA |
| PSRR | 75dB ~ 70dB (1kHz ~ 10kHz) |
| Control Features | Current Limit, Enable, Power Good, Soft Start |
| Protection Features | Over Current, Over Temperature, Over Voltage, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-XFDFN Exposed Pad |
| Supplier Device Package | DFN1212-6-GK |
| Base Product Number | - |
| Current - Supply (Max) | - |
| Product Attribute | |
|
|
 |
| Part Number | NR1600GK270BE4S | NR1600GK000AE4S | NR1600GK180BE4S | NR1600GK330BE4S |
| Manufacturer | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. |
| RoHS Status | ||||
| Description | 500MA LOW DROPOUT VOLTAGE REGULA | 500MA LOW DROPOUT VOLTAGE REGULA | 500MA LOW DROPOUT VOLTAGE REGULA | 500MA LOW DROPOUT VOLTAGE REGULA |
| Series | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
