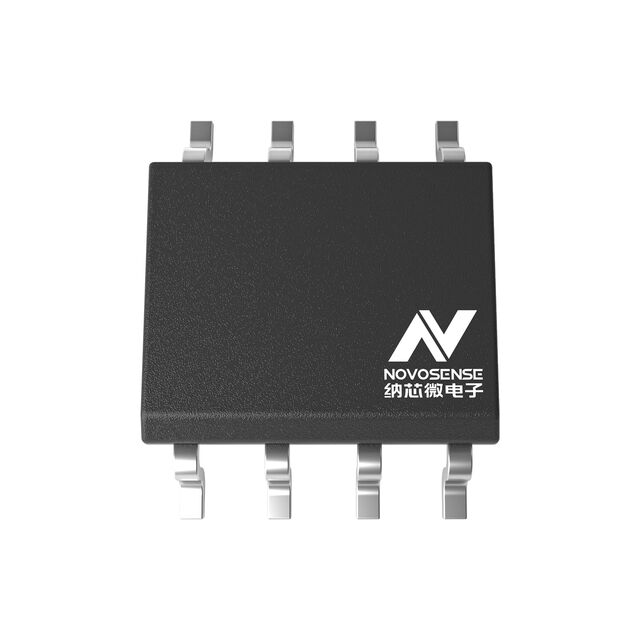

Half-Bridge Gate Driver IC 8-SOIC
NSD1624-Q1SPR
| Category | Integrated Circuits (ICs) - Power Management PMIC - Gate Drivers |
| Manufacturer | NOVOSENSE |
| Series | - |
| Packaging | Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 1.5V, 1.8V |
| Current - Peak Output (Source, Sink) | 4A, 6A |
| Input Type | - |
| High Side Voltage - Max (Bootstrap) | 700 V |
| Rise / Fall Time (Typ) | 10ns, 9ns |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | - |
| Grade | Automotive |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | NSD1624-DSPR | LM5106SD/NOPB | MAX4420ESA | MIC4428ZN |
| Manufacturer | NOVOSENSE | Texas Instruments | Analog Devices Inc./Maxim Integrated | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | HALF BRIDGE GATE DRIVER | IC GATE DRVR HALF-BRIDGE 10WSON | IC GATE DRVR LOW-SIDE 8SOIC | IC GATE DRVR LOW-SIDE 8DIP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tube |
