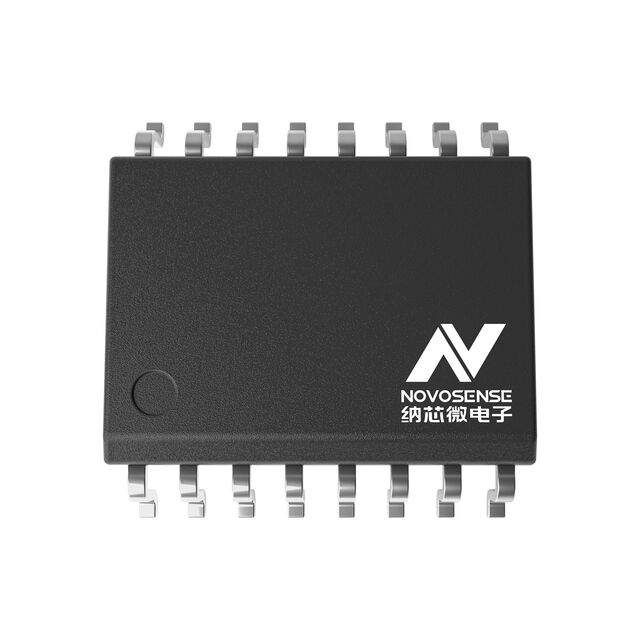

NSI6611ASC-DSWR
lmages are for reference only.Payment Methods
Delivery Services
Gate Driver Capacitive Coupling 5700Vrms 1 Channel 16-SOIC
NSI6611ASC-DSWR
| Category | Isolators - Isolators Gate Drivers - |
| Manufacturer | NOVOSENSE |
| Series | - |
| Packaging | Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | Capacitive Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 5700Vrms |
| Common Mode Transient Immunity (Min) | 150V/ns |
| Propagation Delay tpLH / tpHL (Max) | 110ns, 110ns |
| Pulse Width Distortion (Max) | 50ns |
| Rise / Fall Time (Typ) | 56ns, 53ns |
| Current - Output High, Low | 11A, 12A |
| Current - Peak Output | - |
| Voltage - Forward (Vf) (Typ) | - |
| Voltage - Output Supply | 13V ~ 32V |
| Grade | - |
| Qualification | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Approval Agency | UL, VDE |
| Base Product Number | - |
| Current - DC Forward (If) (Max) | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | NSI6611ASC-Q1SWR | NSI6601B-DSPR | NSI6601B-DSWVR | NSI6601C-DSPR |
| Manufacturer | NOVOSENSE | NOVOSENSE | NOVOSENSE | NOVOSENSE |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 1-CHANNEL ISO SMART GATE DRIVER | 1-CHANNEL ISO GATE DRIVER | 1-CHANNEL ISO GATE DRIVER | 1-CHANNEL ISO GATE DRIVER |
| Series | NOVOSENSE | NOVOSENSE | NOVOSENSE | NOVOSENSE |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Cut Tape (CT) |
