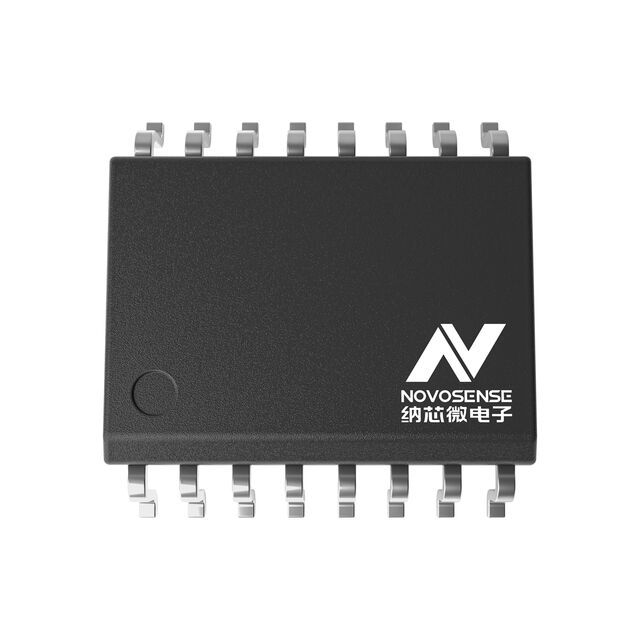

Current Sensor 20A 1 Channel Hall Effect Bidirectional 16-SOIC (0.295", 7.50mm Width)
NSM2011-20B5R-DSWR
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | NOVOSENSE |
| Series | NSM2011 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| For Measuring | AC/DC |
| Sensor Type | Hall Effect |
| Current - Sensing | 20A |
| Number of Channels | 1 |
| Output | Ratiometric, Voltage |
| Sensitivity | 100mV/A |
| Frequency | DC ~ 240kHz |
| Linearity | ±0.2% |
| Accuracy | ±2% |
| Voltage - Supply | 4.5V ~ 5.5V |
| Response Time | 2.2µs |
| Current - Supply (Max) | 10mA |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Bidirectional |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | NSM2011-30B5R-DSWR | NSM2011-50B5R-DSWR | NSM2011-65B5R-DSWR | NSM2012-10B3R-DSPR |
| Manufacturer | NOVOSENSE | NOVOSENSE | NOVOSENSE | NOVOSENSE |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | INTEGRATED CURRENT SENSOR | INTEGRATED CURRENT SENSOR | INTEGRATED CURRENT SENSOR | INTEGRATED CURRENT SENSOR |
| Series | NOVOSENSE | NOVOSENSE | NOVOSENSE | NOVOSENSE |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
