Product CatalogPart Number
NTHL032N065M3S
Manufacturer
onsemiDescription
SIC MOS TO247-3L 32MOHM 650V M3S
Datasheet
DatasheetPackage
TO-247-3
In Stock
60,334 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
NTHL032N065M3S
NTHL032N065M3S
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 650 V 51A (Tc) 200W (Tc) Through Hole TO-247-3
Quick Inquiry
NTHL032N065M3S
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | onsemi |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | SiC (Silicon Carbide Junction Transistor) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 51A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 15V, 18V |
| Rds On (Max) @ Id, Vgs | 44mOhm @ 15A, 18V |
| Vgs(th) (Max) @ Id | 4V @ 7.5mA |
| Vgs (Max) | +22V, -8V |
| Input Capacitance (Ciss) (Max) @ Vds | 1410 pF @ 400 V |
| FET Feature | - |
| Power Dissipation (Max) | 200W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247-3 |
| Package / Case | TO-247-3 |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 55 nC @ 18 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
 |
|
 |
| Part Number | NTHL015N065SC1 | NTHL017N60S5H | NTHL019N60S5F | NTHL019N65S3H |
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SILICON CARBIDE (SIC) MOSFET - 1 | SF5 600V FAST 17MOHM WITH TO-247 | SUPERFET5 FRFET, 19MOHM, TO-247- | MOSFET N-CH 650V 75A TO247-3 |
| Series | - | - | SuperFET® V, FRFET® | SuperFET® III |
| Packaging | Tube | Tube | Tube | Tube |
Customers Also Interested in
Recommended Products
NTHL015N065SC1
onsemi
NTHL017N60S5H
onsemi
NTHL019N60S5F
onsemi
NTHL019N65S3H
onsemi
NTHL020N090SC1
onsemi
NTHL020N120SC1
onsemi
NTHL022N120M3S
onsemi
NTHL023N065M3S
onsemi
NTHL025N065SC1
onsemi
NTHL027N65S3HF
onsemi
NTHL030N120M3S
onsemi
NTHL033N65S3HF
onsemi
NTHL040N120M3S
onsemi
NTHL040N120SC1
onsemi
NTHL040N65S3F
onsemi
NTHL040N65S3HF
onsemi
NTHL041N60S5H
onsemi

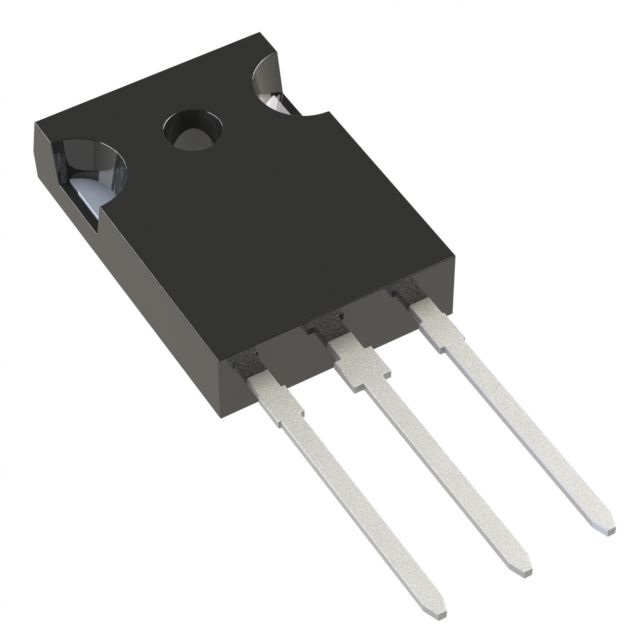

NTHL045N065SC1
