NVMYS4D1N06CLTWG
Manufacturer
onsemiDescription
MOSFET N-CH 60V 22A/100A LFPAK4
Datasheet
DatasheetPackage
SOT-1023, 4-LFPAK
In Stock
12,825 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
NVMYS4D1N06CLTWG
NVMYS4D1N06CLTWG

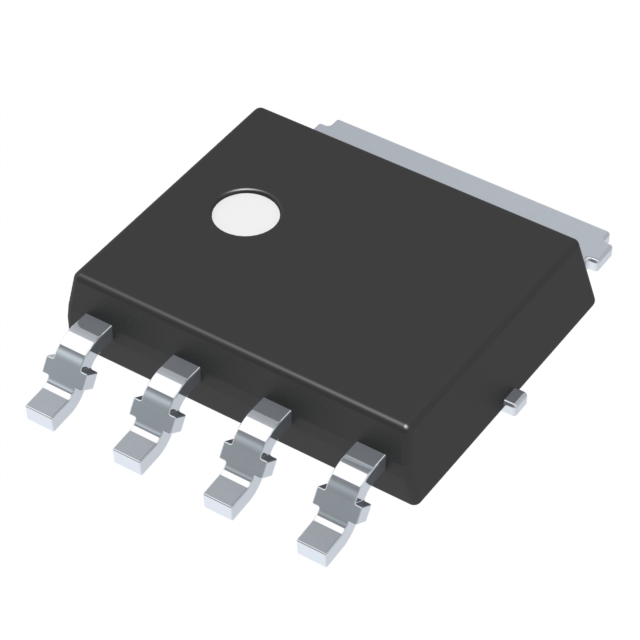

lmages are for reference only.Payment Methods
Delivery Services
N-Channel 60 V 22A (Ta), 100A (Tc) 3.7W (Ta), 79W (Tc) Surface Mount LFPAK4 (5x6)
Quick Inquiry
NVMYS4D1N06CLTWG
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | onsemi |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 22A (Ta), 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 4mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 80µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2200 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.7W (Ta), 79W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | LFPAK4 (5x6) |
| Package / Case | SOT-1023, 4-LFPAK |
| Base Product Number | NVMYS4 |
| Gate Charge (Qg) (Max) @ Vgs | 34 nC @ 10 V |
| Grade | Automotive |
| Qualification | AEC-Q101 |
