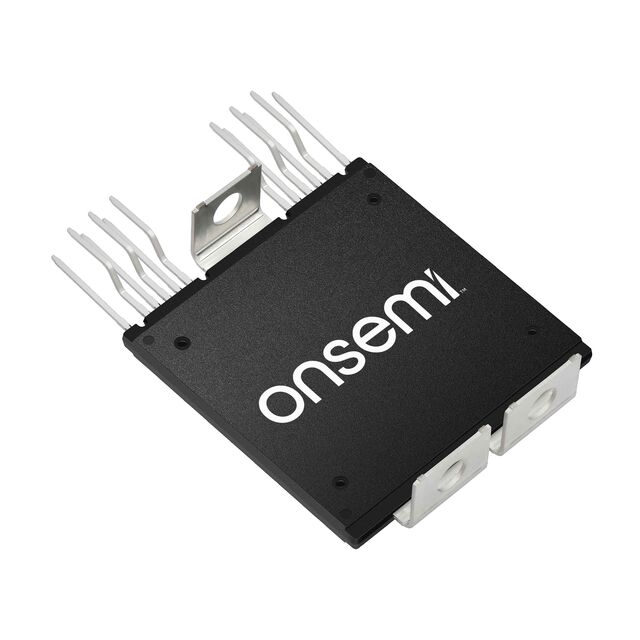

Mosfet Array 1200V (1.2kV) 400A (Tj) 1kW (Tj) Through Hole AHPM15-CDI
NVVR26A120M1WSS
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | onsemi |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Technology | Silicon Carbide (SiC) |
| Configuration | 2 N-Channel (Half Bridge) |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 1200V (1.2kV) |
| Current - Continuous Drain (Id) @ 25°C | 400A (Tj) |
| Rds On (Max) @ Id, Vgs | 2.6mOhm @ 400A, 20V |
| Vgs(th) (Max) @ Id | 3.2V @ 150mA |
| Gate Charge (Qg) (Max) @ Vgs | 1.75µC @ 20V |
| Input Capacitance (Ciss) (Max) @ Vds | 31700pF @ 800V |
| Power - Max | 1kW (Tj) |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 15-PowerDIP Module (2.441", 62.00mm) |
| Supplier Device Package | AHPM15-CDI |
| Base Product Number | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
|
 |
.jpg "TPC8211(TE12L,Q,M)") |
| Part Number | NVVR21A65M2WSB | NVVR26A120M1WSB | NVVR26A120M1WST | TPC8211(TE12L,Q,M) |
| Manufacturer | onsemi | onsemi | onsemi | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | SILICON CARBINE (SIC) MODULE - E | MOSFET 2N-CH 1200V AHPM15-CDE | MOSFET 2N-CH 1200V AHPM15-CDA | MOSFET 2N-CH 30V 5.5A 8SOP |
| Series | - | - | - | - |
| Packaging | Bulk | Tube | Tube | Tape & Reel (TR) |
