Logic Output Optoisolator Open Collector 5000Vrms 1 Channel CMTI 6-SMD

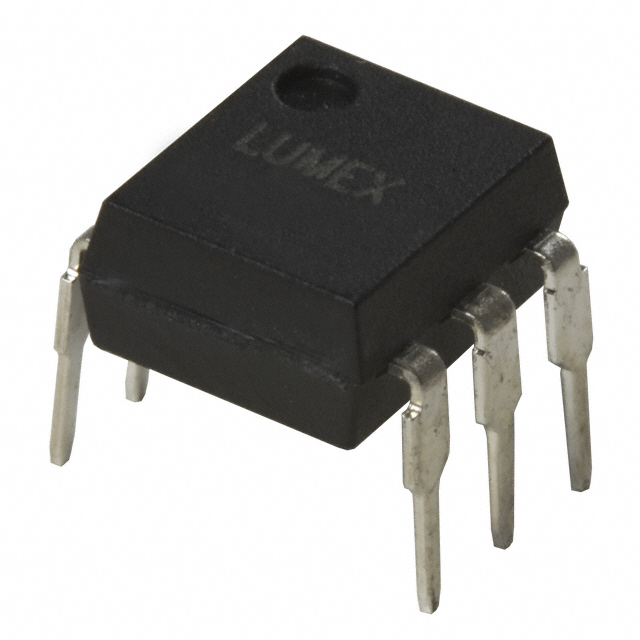

OCP-PCP116-TR
| Category | Isolators - Optoisolators - Logic Output Optoisolators |
| Manufacturer | Lumex Opto/Components Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | - |
| Input Type | DC |
| Output Type | Open Collector |
| Current - Output / Channel | 50 mA |
| Data Rate | - |
| Propagation Delay tpLH / tpHL (Max) | 9µs, 15µs |
| Rise / Fall Time (Typ) | 100ns, 50ns |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50mA |
| Voltage - Supply | 4.5V ~ 17V |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, Gull Wing |
| Supplier Device Package | 6-SMD |
| Base Product Number | OCP-PCP116 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |
| Part Number | OCP-PCP116 | OCP-PCP116 | OCP-PCP116-TR | OPI125TXV |
| Manufacturer | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | TT Electronics/Optek Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | OPTOISO 5KV OPEN COLLECTOR 6DIP | OPTOISO 5KV OPEN COLLECTOR 6DIP | OPTOISO 5KV OPEN COLLECTOR 6SMD | OPTOISO 15KV PUSH PULL |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tape & Reel (TR) | Bulk |
