OEDA012-25.0M

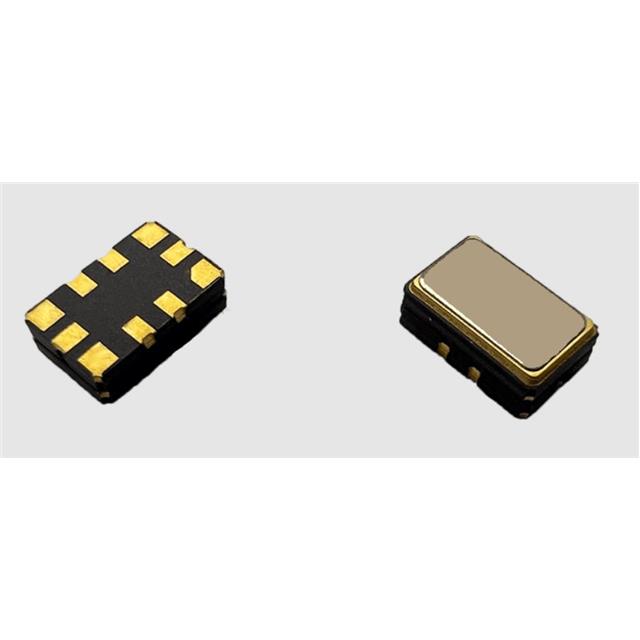

lmages are for reference only.OEDA012-25.0M
CRYSTAL OSC VCTCXO 20.0M +/-.28P
Datasheet10-SMD, No Lead
45,160 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
25 MHz VCTCXO Clipped Sine Wave, CMOS Oscillator 2.8V ~ 3.3V 10-SMD, No Lead
OEDA012-25.0M
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Pletronics, Inc |
| Series | OEDA |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | VCTCXO |
| Frequency | 25 MHz |
| Function | - |
| Output | Clipped Sine Wave, CMOS |
| Voltage - Supply | 2.8V ~ 3.3V |
| Frequency Stability | ±280ppb |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 3mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-SMD, No Lead |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Height - Seated (Max) | 0.077" (1.95mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |
| Part Number | OEDA010-10.0M | OEDA011-20.0M | OEDA013-26.0M | OEDA015-10.0M |
| Manufacturer | Pletronics, Inc | Pletronics, Inc | Pletronics, Inc | Pletronics, Inc |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CRYSTAL OSC VCTCXO 10.0M +/-.28P | CRYSTAL OSC VCTCXO 20.0M +/- .28 | CRYSTAL OSC VCTCXO 26.0M +/- .28 | CRYSTAL OSC VCTCXO 10.0M CLIPPED |
| Series | Pletronics, Inc | Pletronics, Inc | Pletronics, Inc | Pletronics, Inc |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
