OH320-CC-70103CF-012.8M

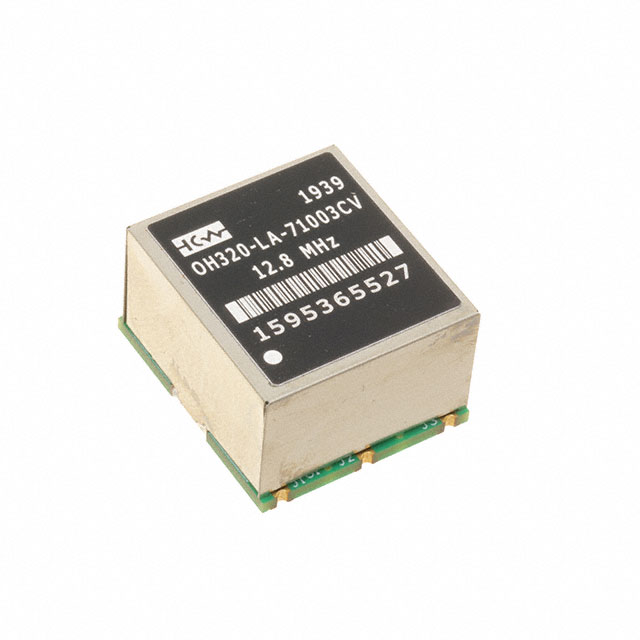

lmages are for reference only.OH320-CC-70103CF-012.8M
XTAL OSC OCXO 12.80MHZ CMOS
Datasheet7-SMD, No Lead
70,700 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
12.8 MHz OCXO CMOS Oscillator 3.3V 7-SMD, No Lead
OH320-CC-70103CF-012.8M
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Connor Winfield |
| Series | OH320-CC |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | OCXO |
| Frequency | 12.8 MHz |
| Function | - |
| Output | CMOS |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±1ppb |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -20°C ~ 70°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | - |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 7-SMD, No Lead |
| Size / Dimension | 1.000" L x 0.866" W (25.40mm x 22.00mm) |
| Height - Seated (Max) | 0.567" (14.40mm) |
| Base Product Number | - |
| Product Attribute |  |
|
|
|

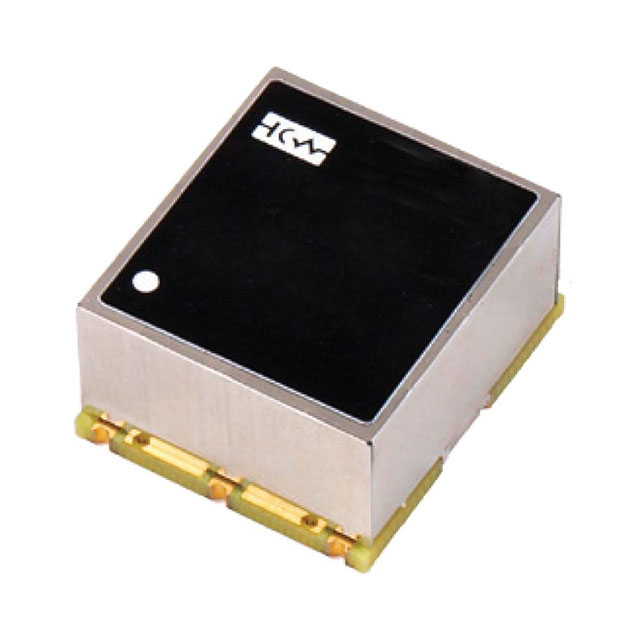

| Part Number | OH320-CC-700503CF-010.0M | OH320-CC-70103CF-020.0M | OH020-61003CV-010.0M | OH100-50503CF-010.0M |
| Manufacturer | Connor Winfield | Connor Winfield | Connor Winfield | Connor Winfield |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC OCXO 10.000MHZ CMOS | XTAL OSC OCXO 20.000MHZ CMOS | XTAL OSC VCOCXO 10.000MHZ LVCMOS | XTAL OSC OCXO 10.0000MHZ CMOS TH |
| Series | Connor Winfield | Connor Winfield | Connor Winfield | Connor Winfield |
| Packaging | Strip | Strip | Bulk | Tray |
