OKDX-T/20-W12-001-C
lmages are for reference only.OKDX-T/20-W12-001-C
DC DC CONVERTER 0.6-3.3V
Datasheet17-SIP Module
42,813 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.6 ~ 3.3V 20A 4.5V - 14V Input
OKDX-T/20-W12-001-C
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | Okami™ OKDx-T/20-W12 |
| Packaging | Tray |
| RoHS Status | RoHS non-compliant |
| Type | Non-Isolated PoL Module, Digital |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 14V |
| Voltage - Output 1 | 0.6 ~ 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 20A |
| Power (Watts) | - |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 125°C |
| Efficiency | 93.6% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 17-SIP Module |
| Size / Dimension | 1.04" L x 0.30" W x 0.61" H (26.3mm x 7.6mm x 15.6mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | OKDX-T |
| Voltage - Isolation | - |
| Product Attribute |  |
|
 |
 |

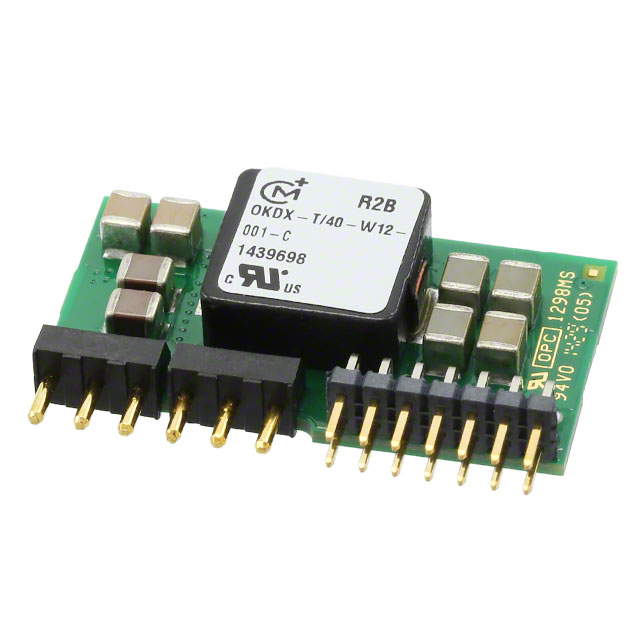

| Part Number | OKDX-T/25-W12-001-C | OKDX-T/25-W12-001-C | OKDX-T/40-W12-001-C | OKDX-T/50-W12-001-C |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | DC DC CONVERTER 0.6-3.3V | DC DC CONVERTER 0.6-3.3V | DC DC CONVERTER 0.6-3.3V | DC DC CONVERTER 0.6-3.3V 165W |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| Packaging | Tray | Tray | Tray | Tray |
