OKL2-T/6-W12N-C

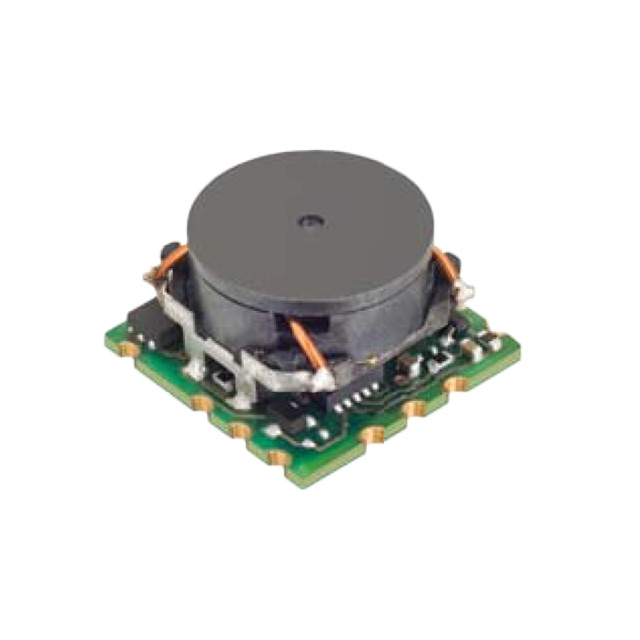

lmages are for reference only.OKL2-T/6-W12N-C
DC DC CONVERTER 0.591-5.5V
Datasheet12-SMD Module
90,045 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 0.591 ~ 5.5V 6A 4.5V - 14V Input
OKL2-T/6-W12N-C
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | Okami™ OKL2-T/6-W12 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 14V |
| Voltage - Output 1 | 0.591 ~ 5.5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 6A |
| Power (Watts) | - |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 93% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 12-SMD Module |
| Size / Dimension | 0.48" L x 0.48" W x 0.28" H (12.2mm x 12.2mm x 7.1mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | OKL2-T |
| Voltage - Isolation | - |
| Product Attribute | |
 |
 |
 |
| Part Number | OKL2-T/6-W12N-C | OKL2-T/6-W12P-C | OKL2-T/6-W5N-C | OKL2-T/6-W5P-C |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 0.591-5.5V | DC DC CONVERTER 0.591-5.5V | DC DC CONVERTER 0.6-3.3V | DC DC CONVERTER 0.6-3.3V |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
