OMIH-SH-112D,394

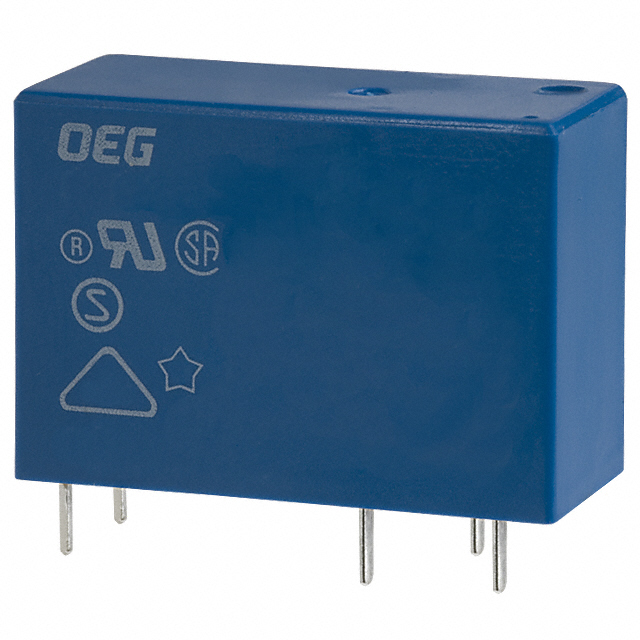

lmages are for reference only.OMIH-SH-112D,394
RELAY GEN PURPOSE SPDT 16A 12V
Datasheet-
15,788 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
OMIH-SH-112D,394
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | OMIH, OEG |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 16 A |
| Switching Voltage | 250VAC, 30VDC |
| Load - Max Switching | - |
| Coil Current | 60 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 0.6 VDC |
| Operate Time | 15 ms |
| Release Time | 8 ms |
| Operating Temperature | -30°C ~ 60°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Approval Agency | CQC, CSA, cURus, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 200 Ohms |
| Base Product Number | OMIH-SH |
| Product Attribute |  |
 |
|
|
| Part Number | OMIH-SH-112D1,300 | OMIH-SH-112DM,394 | OMIH-SH-112L,000 | OMIH-SH-112L,094 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | Not applicable | |
| Description | RELAY GEN PURPOSE SPDT 16A 12V | RELAY GEN PURPOSE SPST 16A 12V | RELAY GEN PURPOSE SPDT 16A 12V | RELAY GEN PURPOSE SPDT 16A 12V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Tube | Bulk | Bulk | Bulk |
