OPIA4010DTU
lmages are for reference only.OPIA4010DTU
OPTOISOLTR 5KV DARLINGTON 4-DIP
Datasheet4-DIP (0.300", 7.62mm)
75,047 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Darlington Output 5000Vrms 1 Channel 4-DIP
OPIA4010DTU
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | TT Electronics/Optek Technology |
| Series | - |
| Packaging | Tube |
| RoHS Status | |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 600% @ 1mA |
| Current Transfer Ratio (Max) | 9000% @ 1mA |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 60µs, 50µs |
| Input Type | DC |
| Output Type | Darlington |
| Voltage - Output (Max) | 300V |
| Current - Output / Channel | 150mA |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 1.5V |
| Operating Temperature | -30°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 4-DIP (0.300", 7.62mm) |
| Supplier Device Package | 4-DIP |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

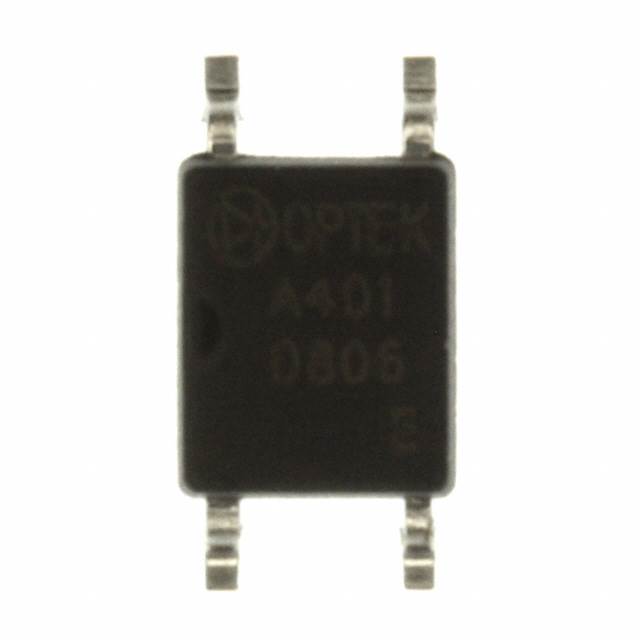

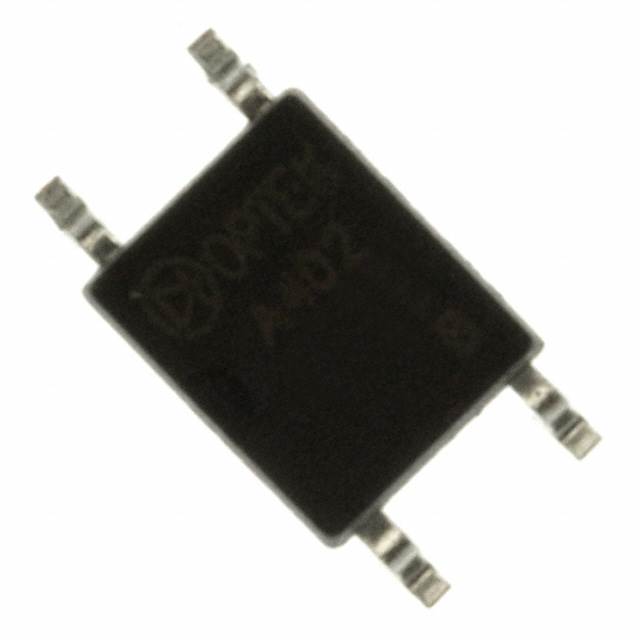

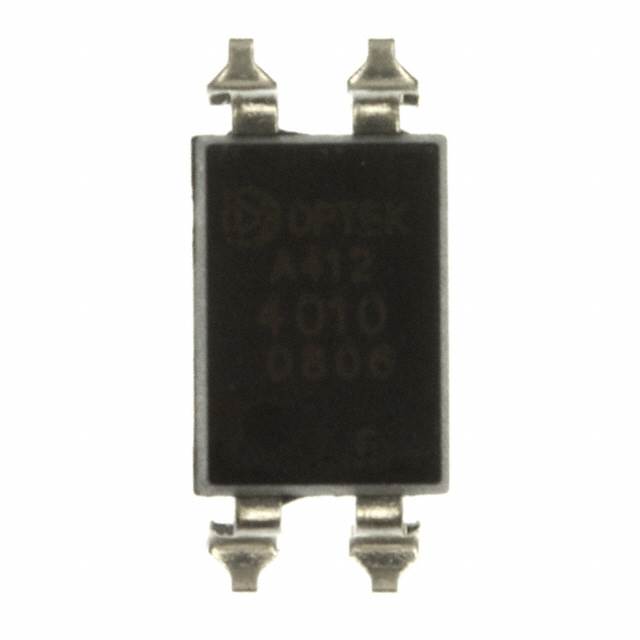

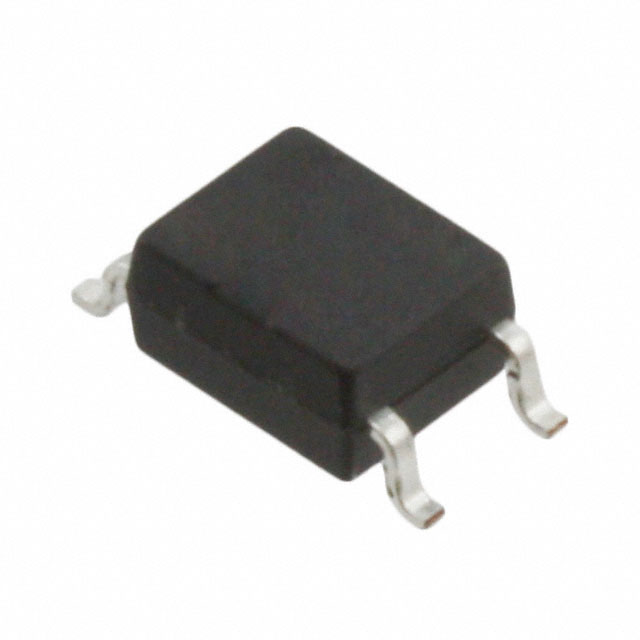

| Part Number | OPIA4010ATU | OPIA401BTR | OPIA401BTU | OPIA402BTU |
| Manufacturer | TT Electronics/Optek Technology | TT Electronics/Optek Technology | TT Electronics/Optek Technology | TT Electronics/Optek Technology |
| RoHS Status | ||||
| Description | OPTOISOLTR 5KV DARLINGTON 4-SMD | OPTOISO 3.75KV DARLINGTON 4SOP | OPTOISO 3.75KV DARLINGTON 4SOP | OPTOISOLATOR 3.75KV TRANS 4-SOP |
| Series | - | - | - | - |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tube |
