ORWH-SH-112D,N000
lmages are for reference only.ORWH-SH-112D,N000
RELAY GEN PURPOSE SPDT 10A 12V
Datasheet-
72,904 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
ORWH-SH-112D,N000
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | ORWH, OEG |
| Packaging | Tube |
| RoHS Status | |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 277VAC, 28VDC - Max |
| Load - Max Switching | 2770VA, 280W |
| Coil Current | 30 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | Class A |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Operating Temperature | -30°C ~ 70°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | cURus, TUV |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 400 Ohms |
| Base Product Number | ORWH-SH |
| Product Attribute |  |
 |
 |
 |

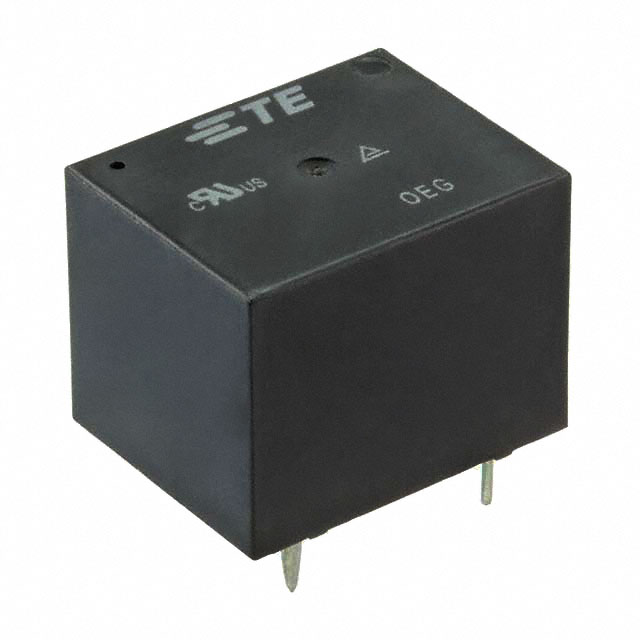

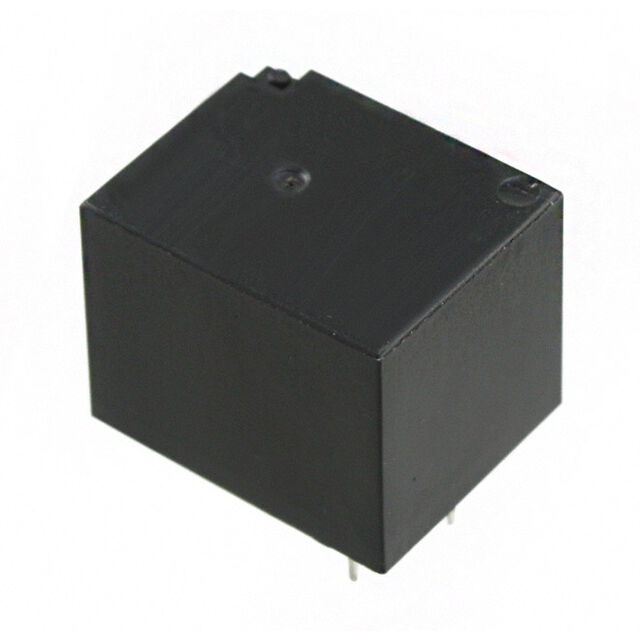

| Part Number | ORWH-SH-112D1F,000 | ORWH-SH-112DM1F,000 | ORWH-SH-112DM1F000 | ORWH-SH-112H3F,000 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | Not applicable | |
| Description | RELAY GEN PURPOSE SPDT 10A 12V | RELAY GEN PURPOSE SPST 10A 12V | ORWH-SH-112DM1F 000 | RELAY GEN PURPOSE SPDT 10A 12V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity | TE Connectivity Potter & Brumfield Relays |
| Packaging | Tray | Tube | Tube | Tray |
