OVSA1BBC2R8
lmages are for reference only.OVSA1BBC2R8
LED BLUE CLEAR 4PLCC SMD
Datasheet4-SMD, J-Lead
76,015 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Blue 470nm LED Indication - Discrete 3.6V 4-SMD, J-Lead
OVSA1BBC2R8
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | TT Electronics/Optek Technology |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Blue |
| Configuration | Standard |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 550mcd |
| Lens Style | Round with Flat Top |
| Lens Size | - |
| Voltage - Forward (Vf) (Typ) | 3.6V |
| Current - Test | 30mA |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 470nm |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 4-SMD, J-Lead |
| Supplier Device Package | 4-PLCC |
| Size / Dimension | 3.20mm L x 2.70mm W |
| Height (Max) | 1.95mm |
| Base Product Number | OVSA1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

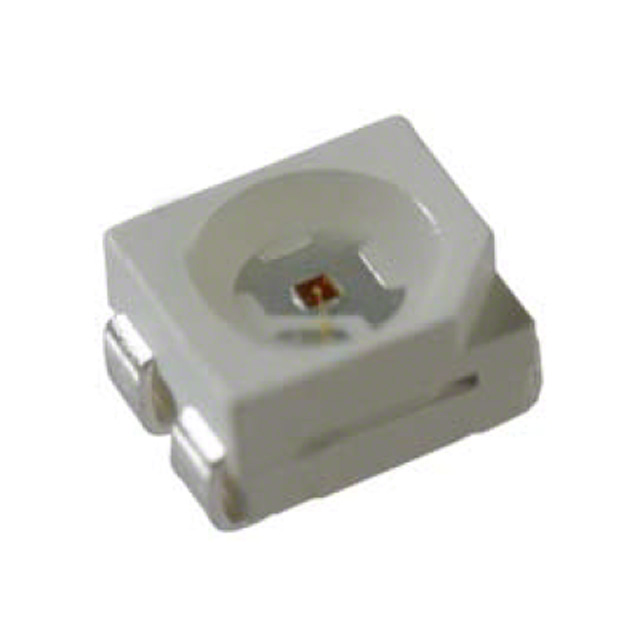

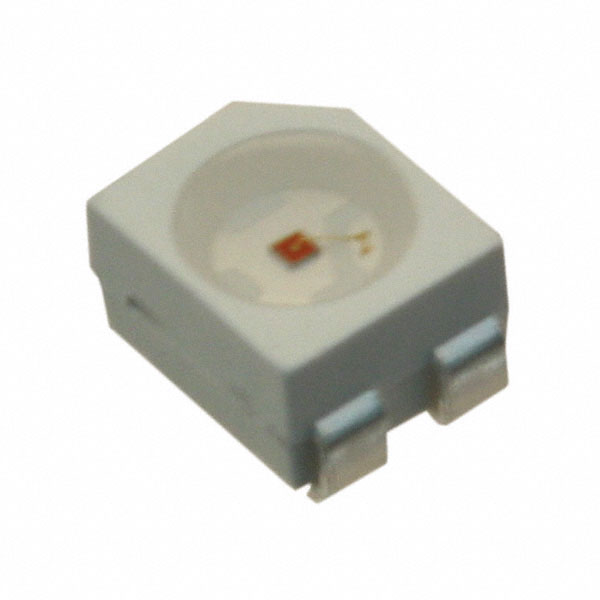

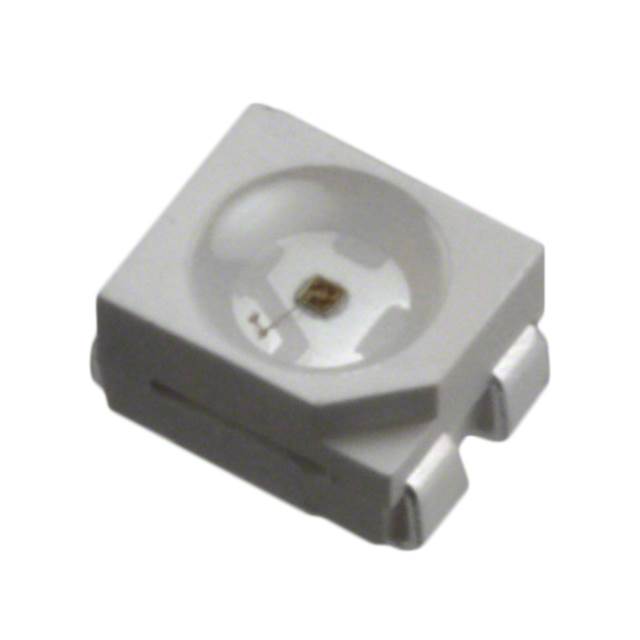

| Part Number | OVSA1ABC2R8 | OVSA1ABLCR8 | OVSA1GBC2R8 | OVSA1SBC2R8 |
| Manufacturer | TT Electronics/Optek Technology | TT Electronics/Optek Technology | TT Electronics/Optek Technology | TT Electronics/Optek Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED AMBER CLEAR 4PLCC SMD | LED AMBER CLEAR 4PLCC SMD | LED GREEN CLEAR 4PLCC SMD | LED RED CLEAR 4PLCC SMD |
| Series | TT Electronics/Optek Technology | TT Electronics/Optek Technology | TT Electronics/Optek Technology | TT Electronics/Optek Technology |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
