OVSRRGBCC3
lmages are for reference only.OVSRRGBCC3
LED RGB DIFFUSED 1204 SMD R/A
Datasheet4-SMD, No Lead
73,328 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Red, Green, Blue (RGB) 625nm Red, 530nm Green, 475nm Blue LED Indication - Discrete 2V Red, 3.3V Green, 3.3V Blue 4-SMD, No Lead
OVSRRGBCC3
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | TT Electronics/Optek Technology |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 105mcd Red, 330mcd Green, 200mcd Blue |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm |
| Voltage - Forward (Vf) (Typ) | 2V Red, 3.3V Green, 3.3V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 150° |
| Mounting Type | Surface Mount, Right Angle |
| Wavelength - Dominant | 625nm Red, 530nm Green, 475nm Blue |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 4-SMD, No Lead |
| Supplier Device Package | 1204 |
| Size / Dimension | 3.20mm L x 1.50mm W |
| Height (Max) | 1.00mm |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

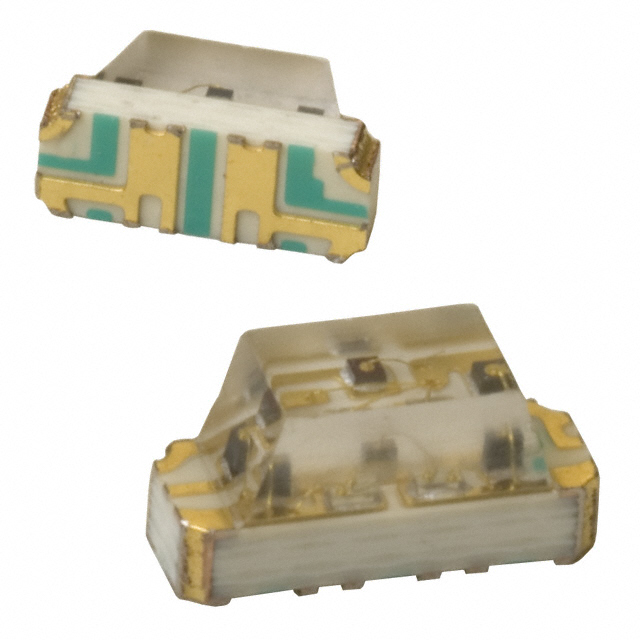

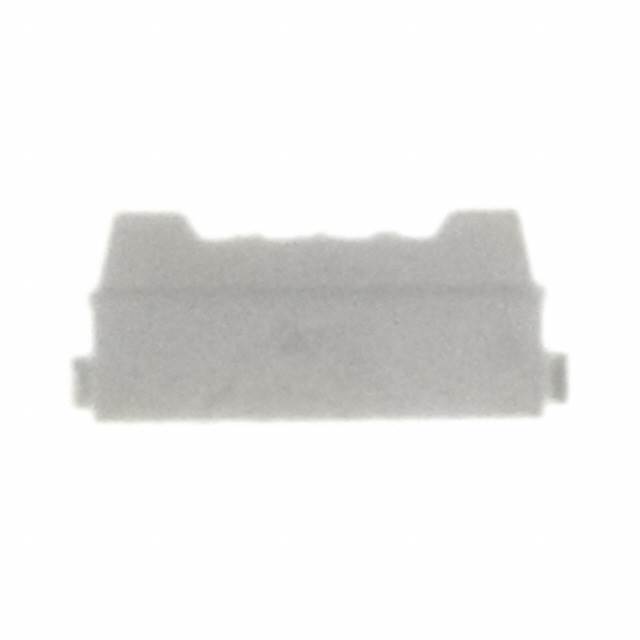

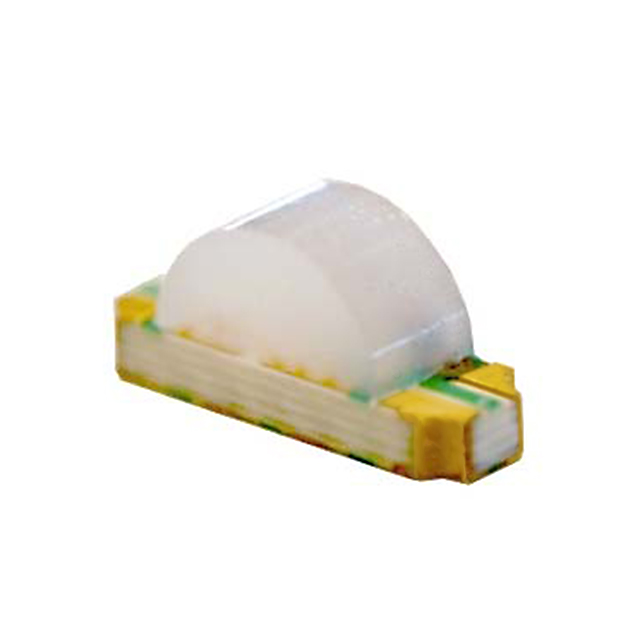

| Part Number | OVSRRGBBC9 | OVSRRGBCC3TM | OVSRWAC1R6 | LA E67B-V1AA-34-1-50-R18-Z |
| Manufacturer | TT Electronics/Optek Technology | TT Electronics/Optek Technology | TT Electronics/Optek Technology | ams-OSRAM USA INC. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | LED RGB CLEAR SMD R/A | LED RGB DIFFUSED 1204 SMD | LED WHITE CLR SIDE VIEW SMD R/A | LED AMBER CLEAR 4PLCC SMD |
| Series | TT Electronics/Optek Technology | TT Electronics/Optek Technology | TT Electronics/Optek Technology | ams-OSRAM USA INC. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
