P1020NSN2DFB

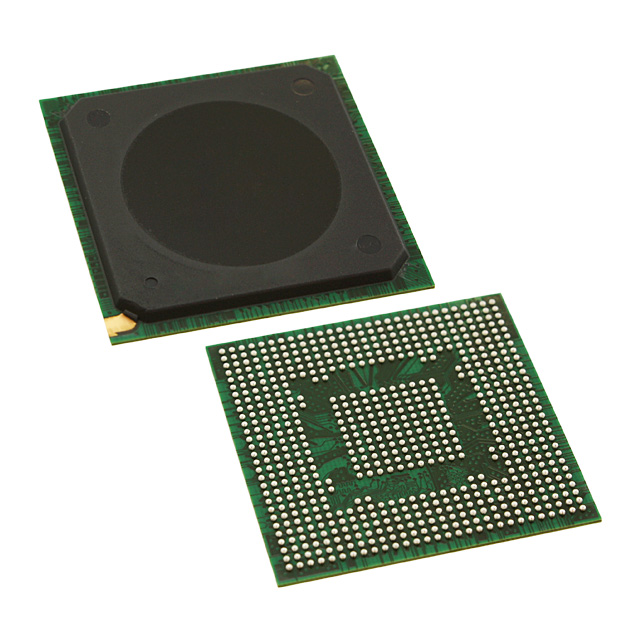

lmages are for reference only.P1020NSN2DFB
IC MPU QORIQ P1 800MHZ PBGA689
Datasheet689-BBGA Exposed Pad
61,434 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
PowerPC e500v2 Microprocessor IC QorIQ P1 2 Core, 32-Bit 800MHz 689-TEPBGA II (31x31)
P1020NSN2DFB
| Category | Integrated Circuits (ICs) - Embedded - Microprocessors |
| Manufacturer | Freescale Semiconductor |
| Series | QorIQ P1 |
| Packaging | Bulk |
| RoHS Status | |
| Core Processor | PowerPC e500v2 |
| Number of Cores/Bus Width | 2 Core, 32-Bit |
| Speed | 800MHz |
| Co-Processors/DSP | - |
| RAM Controllers | DDR2, DDR3 |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Ethernet | 10/100/1000Mbps (3) |
| SATA | - |
| USB | USB 2.0 + PHY (2) |
| Voltage - I/O | 2.5V, 3.3V |
| Operating Temperature | 0°C ~ 125°C (TA) |
| Security Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 689-BBGA Exposed Pad |
| Supplier Device Package | 689-TEPBGA II (31x31) |
| Additional Interfaces | DUART, I2C, MMC/SD, SPI |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | P1020NSN2DFB | P1020NSN2FFB | P1020NSN2HFB | P1020NSN2HFB |
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | Freescale Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IC MPU QORIQ P1 800MHZ PBGA689 | IC MPU QORIQ P1 800MHZ PBGA689 | IC MPU QORIQ P1 800MHZ PBGA689 | IC MPU QORIQ P1 800MHZ PBGA689 |
| Series | QorIQ P1 | QorIQ P1 | QorIQ P1 | QorIQ P1 |
| Packaging | Tray | Tray | Tray | Bulk |
