Product CatalogPart Number
P4KE530CA-AP
Manufacturer
Micro Commercial CoDescription
Interface
Datasheet
DatasheetPackage
DO-204AL, DO-41, Axial
In Stock
56,824 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
P4KE530CA-AP
P4KE530CA-AP

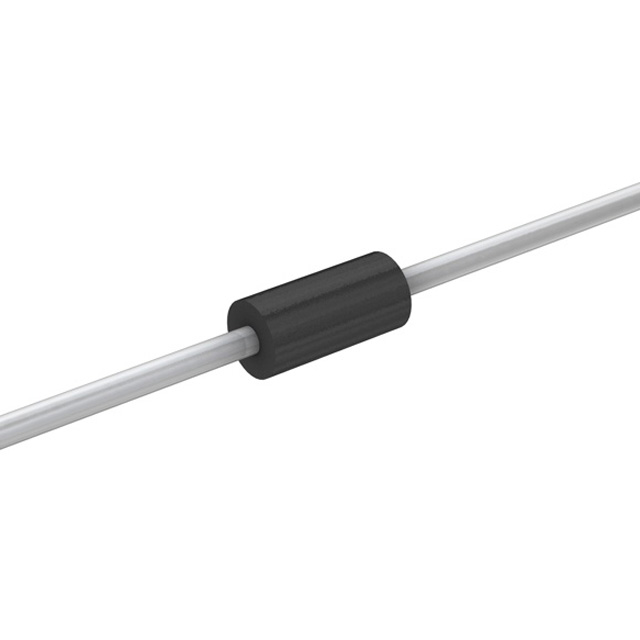

lmages are for reference only.Payment Methods
Delivery Services
725V Clamp 550mA Ipp Tvs Diode Through Hole DO-41
Quick Inquiry
P4KE530CA-AP
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Micro Commercial Co |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 477V |
| Voltage - Breakdown (Min) | 503.5V |
| Voltage - Clamping (Max) @ Ipp | 725V |
| Current - Peak Pulse (10/1000µs) | 550mA |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | DO-204AL, DO-41, Axial |
| Supplier Device Package | DO-41 |
| Base Product Number | P4KE530 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
|
 |
|
| Part Number | P4KE530CA-AT/B | P4KE530CA-AT/TR13 | P4KE530CA | P4KE530CA |
| Manufacturer | YAGEO | YAGEO | SMC Diode Solutions | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DO-204AL 450V 725V AUTO | TVS DO-204AL 450V 725V AUTO | TVS DIODE DO41 | TVS DIODE 477VWM 725VC DO204AL |
| Series | YAGEO | YAGEO | SMC Diode Solutions | Littelfuse Inc. |
| Packaging | Tape & Box (TB) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
