P4SMAJ28A-AQ
lmages are for reference only.P4SMAJ28A-AQ
TVS DIODE 28VWM 45.4VC DO-214AC
DatasheetDO-214AC, SMA
94,841 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
45.4V Clamp 8.8A Ipp Tvs Diode Surface Mount DO-214AC (SMA)
P4SMAJ28A-AQ
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 28V |
| Voltage - Breakdown (Min) | 31.1V |
| Voltage - Clamping (Max) @ Ipp | 45.4V |
| Current - Peak Pulse (10/1000µs) | 8.8A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |

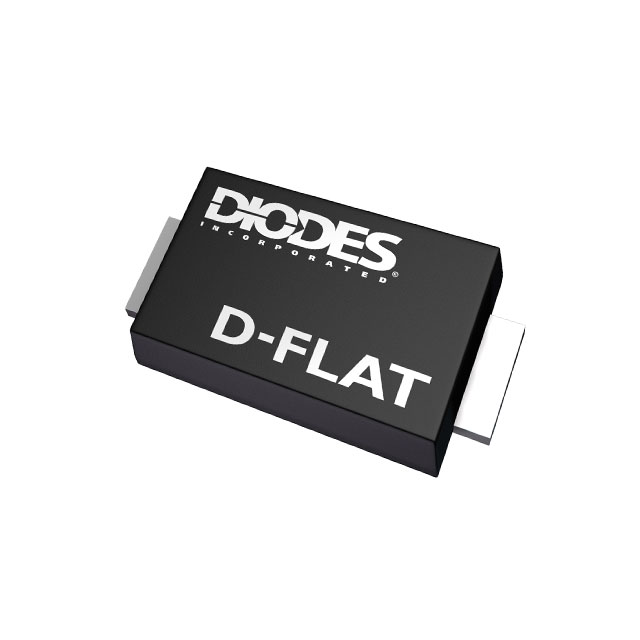

| Part Number | P4SMAJ28A-AU_R1_000A1 | P4SMAJ28A | P4SMAJ28ADF-13 | P4SMAJ28AS_R1_00001 |
| Manufacturer | Panjit International Inc. | Diotec Semiconductor | Diodes Incorporated | Panjit International Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SURFACE MOUNT TRANSIENT VOLTAGE | TVS SMA 28V 400W UNIDIR | TVS DIODE 28VWM 45.4VC D-FLAT | SURFACE MOUNT TRANSIENT VOLTAGE |
| Series | Panjit International Inc. | Diotec Semiconductor | Diodes Incorporated | Panjit International Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
