Product CatalogPart Number
P4SMAJ5.0CA
Manufacturer
Diotec SemiconductorDescription
TVS SMA 150DEG 5V 400W BIDIR
Datasheet
DatasheetPackage
DO-214AC, SMA
In Stock
60,115 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
P4SMAJ5.0CA
P4SMAJ5.0CA

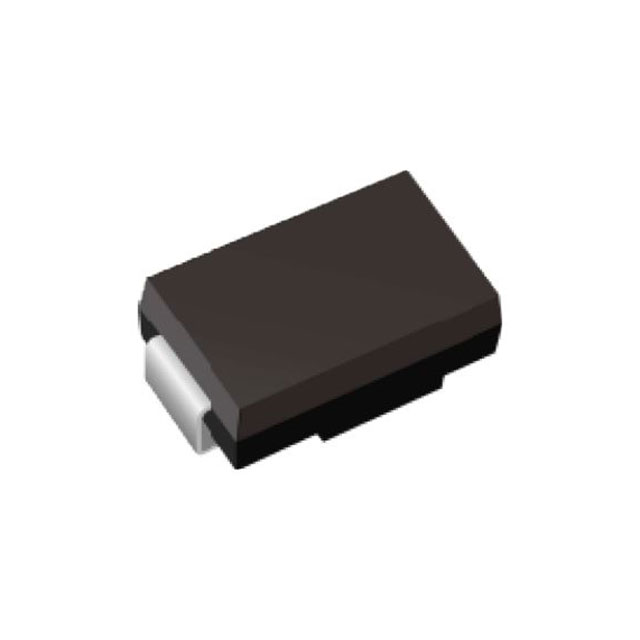

lmages are for reference only.Payment Methods
Delivery Services
9.2V Clamp 43.5A Ipp Tvs Diode Surface Mount DO-214AC (SMA)
Quick Inquiry
P4SMAJ5.0CA
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Cut Tape (CT)-->Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 5V |
| Voltage - Breakdown (Min) | 6.4V |
| Voltage - Clamping (Max) @ Ipp | 9.2V |
| Current - Peak Pulse (10/1000µs) | 43.5A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | P4SMAJ5.0C | P4SMAJ5.0CA_R1_00001 | P4SMAJ5.0C_R1_00001 | P4SMAJ5.0 |
| Manufacturer | Diotec Semiconductor | Panjit International Inc. | Panjit International Inc. | Diotec Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | TVS DIODE 5VWM 10.3VC DO-214AC | SURFACE MOUNT TRANSIENT VOLTAGE | SURFACE MOUNT TRANSIENT VOLTAGE | TVS DIODE 5VWM 10.3VC DO-214AC |
| Series | Diotec Semiconductor | Panjit International Inc. | Panjit International Inc. | Diotec Semiconductor |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
