Product CatalogPart Number
P6KE47CA
Manufacturer
STMicroelectronicsDescription
TVS DIODE 40VWM 84VC DO15
Datasheet
DatasheetPackage
DO-204AC, DO-15, Axial
In Stock
20,566 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
P6KE47CA
P6KE47CA

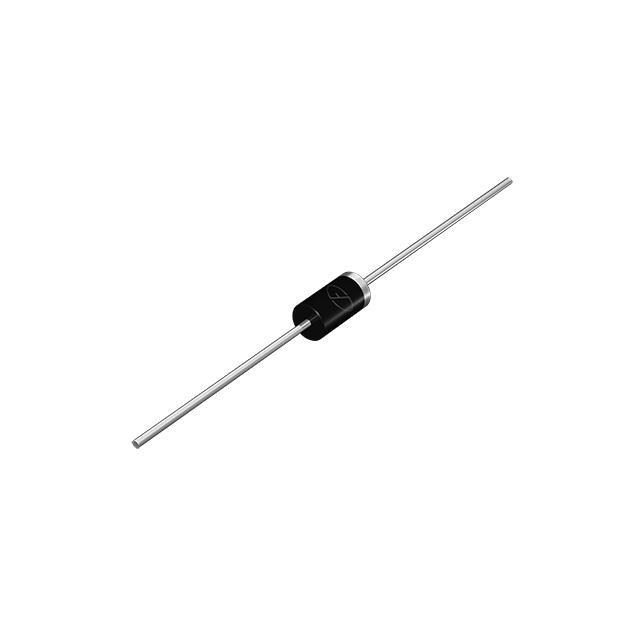

lmages are for reference only.Payment Methods
Delivery Services
84V Clamp 48A (8/20µs) Ipp Tvs Diode Through Hole DO-204AC (DO-15)
Quick Inquiry
P6KE47CA
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | STMicroelectronics |
| Series | P6KE, TRANSIL™ |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 40V |
| Voltage - Breakdown (Min) | 44.7V |
| Voltage - Clamping (Max) @ Ipp | 84V |
| Current - Peak Pulse (10/1000µs) | 48A (8/20µs) |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 400pF @ 1MHz |
| Operating Temperature | - |
| Mounting Type | Through Hole |
| Package / Case | DO-204AC, DO-15, Axial |
| Supplier Device Package | DO-204AC (DO-15) |
| Base Product Number | P6KE47 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
|
 |
| Part Number | P6KE47C | P6KE47C | P6KE47C | P6KE47C-B |
| Manufacturer | Taiwan Semiconductor Corporation | Littelfuse Inc. | Good-Ark Semiconductor | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | 600W, 47V, BIDIRECTIONAL, TVS | TVS DO15 38.1V 600W BIDIR | TVS, BI-DIR, 600W, 47V, DO-204AC | TVS DIODE 40.2VWM 68.04V DO204AC |
| Series | Taiwan Semiconductor Corporation | Littelfuse Inc. | Good-Ark Semiconductor | Littelfuse Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
