P6KE91A_R2_00001

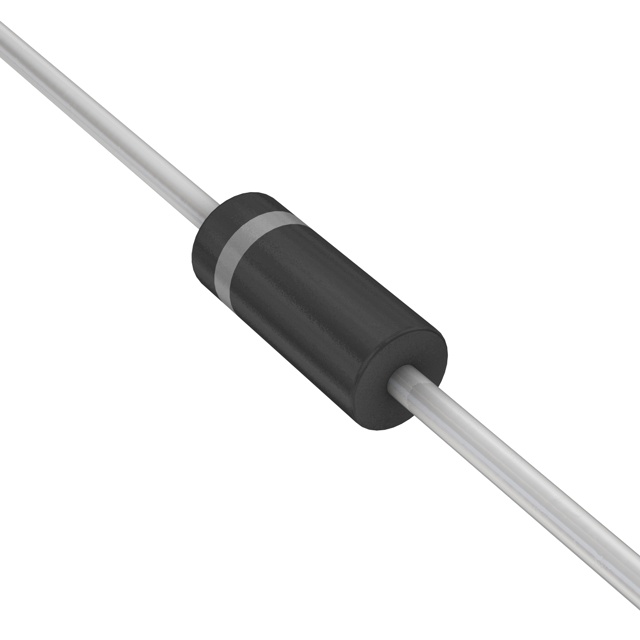

lmages are for reference only.P6KE91A_R2_00001
GLASS PASSIVATED JUNCTION TRANSI
DatasheetDO-204AC, DO-15, Axial
11,047 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
125V Clamp 4.8A Ipp Tvs Diode Through Hole DO-15
P6KE91A_R2_00001
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Panjit International Inc. |
| Series | P6KE |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 77.8V |
| Voltage - Breakdown (Min) | 86.5V |
| Voltage - Clamping (Max) @ Ipp | 125V |
| Current - Peak Pulse (10/1000µs) | 4.8A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | DO-204AC, DO-15, Axial |
| Supplier Device Package | DO-15 |
| Base Product Number | P6KE91 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |
| Part Number | P6KE91 | P6KE91 | P6KE91-B | P6KE91-E3/54 |
| Manufacturer | Littelfuse Inc. | Taiwan Semiconductor Corporation | Littelfuse Inc. | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DO15 73.7V 600W UNIDIR | 600W, 91V, UNIDIRECTIONAL, TVS | TVS DIODE 77.8VWM 131.25VC DO204 | TVS DIODE 73.7VWM 131VC DO204AC |
| Series | Littelfuse Inc. | Taiwan Semiconductor Corporation | Littelfuse Inc. | Vishay General Semiconductor - Diodes Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Bulk | Tape & Reel (TR) |
