P6SMB130

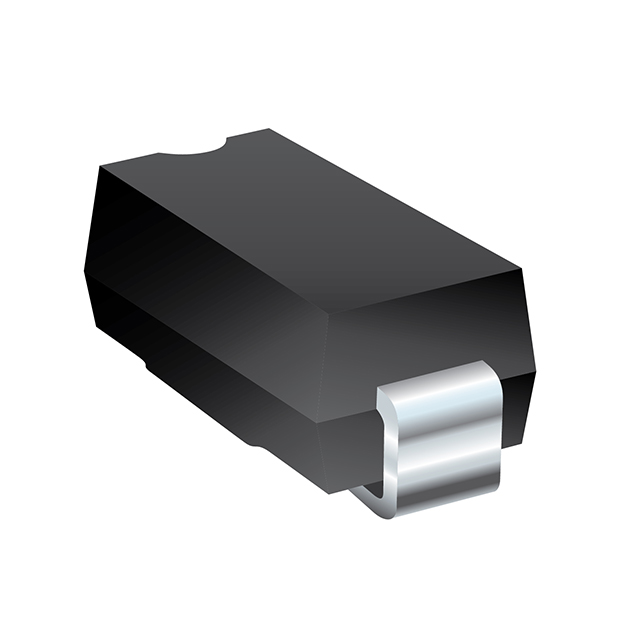

lmages are for reference only.P6SMB130
600W, 130V, 10%, UNIDIRECTIONAL,
DatasheetDO-214AA, SMB
71,468 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
187V Clamp 3.3A Ipp Tvs Diode Surface Mount DO-214AA (SMB)
P6SMB130
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | P6SMB |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 105V |
| Voltage - Breakdown (Min) | 117V |
| Voltage - Clamping (Max) @ Ipp | 187V |
| Current - Peak Pulse (10/1000µs) | 3.3A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMB) |
| Base Product Number | P6SMB130 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |
| Part Number | P6SMB13 | P6SMB13 | P6SMB130 | P6SMB130A |
| Manufacturer | Littelfuse Inc. | Taiwan Semiconductor Corporation | Littelfuse Inc. | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | TVS DIODE 11.1VWM 19.11VC DO214 | 600W, 13V, 10%, UNIDIRECTIONAL, | TVS DIODE 111VWM 187.95VC DO214 | TVS DIODE 111VWM 179VC SMB |
| Series | Littelfuse Inc. | Taiwan Semiconductor Corporation | Littelfuse Inc. | Eaton - Electronics Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
