P6SMB43CA R5G
lmages are for reference only.P6SMB43CA R5G
TVS DIODE 36.8VWM 59.3VC DO214AA
DatasheetDO-214AA, SMB
37,944 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
59.3V Clamp 10.6A Ipp Tvs Diode Surface Mount DO-214AA (SMB)
P6SMB43CA R5G
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | P6SMB |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 36.8V |
| Voltage - Breakdown (Min) | 40.9V |
| Voltage - Clamping (Max) @ Ipp | 59.3V |
| Current - Peak Pulse (10/1000µs) | 10.6A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMB) |
| Base Product Number | P6SMB43 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |

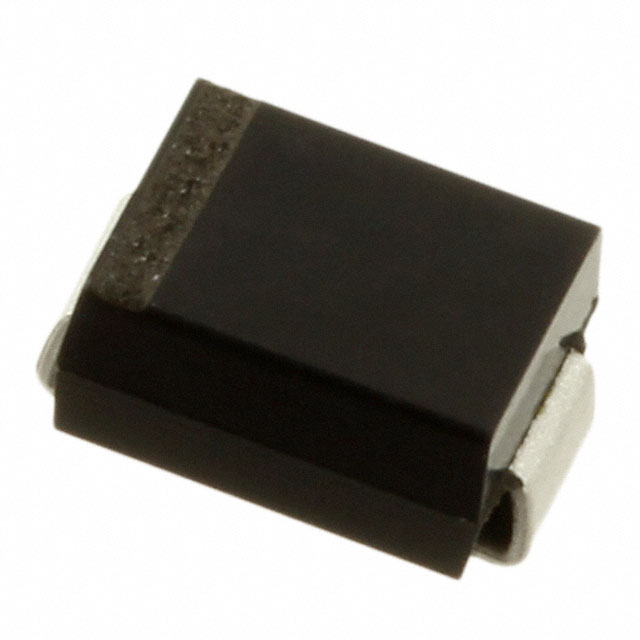

| Part Number | P6SMB43CA TR13 PBFREE | P6SMB43 | P6SMB43 | P6SMB43A |
| Manufacturer | Central Semiconductor Corp | Taiwan Semiconductor Corporation | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 36.8VWM 59.3VC SMB | 600W, 43V, 10%, UNIDIRECTIONAL, | TVS DIODE 36.8VWM 62.27VC DO214 | TVS DIODE 36.8VWM 59.3VC DO214AA |
| Series | Central Semiconductor Corp | Taiwan Semiconductor Corporation | Littelfuse Inc. | Littelfuse Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
