80.5V Clamp 7.8A Ipp Tvs Diode Surface Mount DO-214AA (SMB)

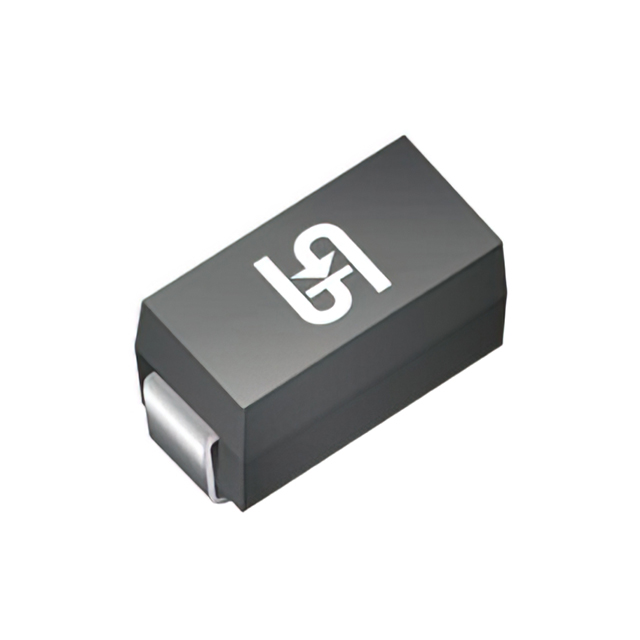

P6SMB56C
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | P6SMB |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 45.4V |
| Voltage - Breakdown (Min) | 50.4V |
| Voltage - Clamping (Max) @ Ipp | 80.5V |
| Current - Peak Pulse (10/1000µs) | 7.8A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMB) |
| Base Product Number | P6SMB56 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
|
| Part Number | P6SMB56 | P6SMB56 | P6SMB56A | P6SMB56A |
| Manufacturer | Taiwan Semiconductor Corporation | Littelfuse Inc. | Eaton - Electronics Division | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | 600W, 56V, 10%, UNIDIRECTIONAL, | TVS DIODE 47.8VWM 80.85VC DO214 | TVS DIODE 47.8VWM 77VC SMB | TVS DIODE 47.8VWM 77VC DO214AA |
| Series | Taiwan Semiconductor Corporation | Littelfuse Inc. | Eaton - Electronics Division | Taiwan Semiconductor Corporation |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
