Product CatalogPart Number
P78E15-1000
Manufacturer
CUI Inc.Description
DC DC CONVERTER 15V 15W
Datasheet
DatasheetPackage
3-SIP Module
In Stock
87,017 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
P78E15-1000
P78E15-1000
lmages are for reference only.Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 15V 1A 20V - 36V Input
Quick Inquiry
P78E15-1000
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | CUI Inc. |
| Series | P78E-1000 |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 20V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1A |
| Power (Watts) | 15 W |
| Applications | ITE (Commercial) |
| Features | SCP |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 96% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 3-SIP Module |
| Size / Dimension | 0.46" L x 0.31" W x 0.41" H (11.6mm x 8.0mm x 10.4mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | P78E15 |
| Voltage - Isolation | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

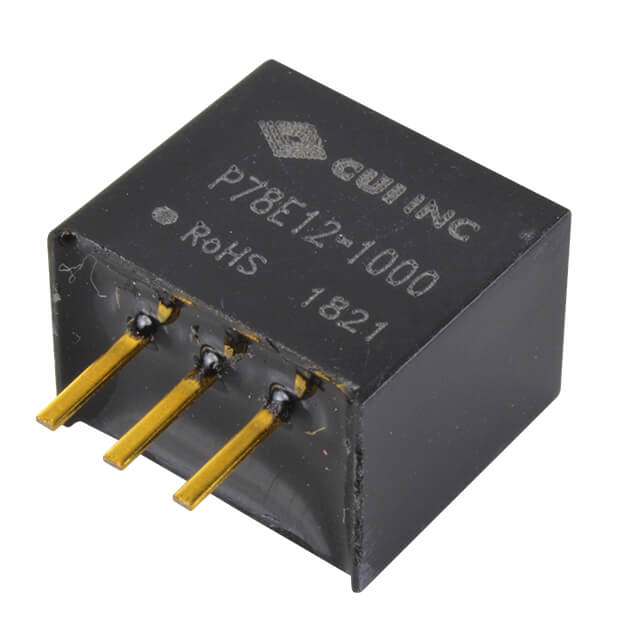

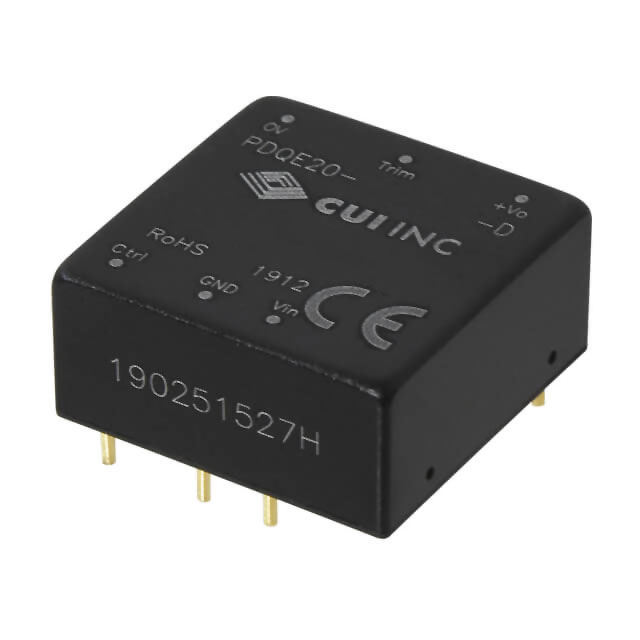

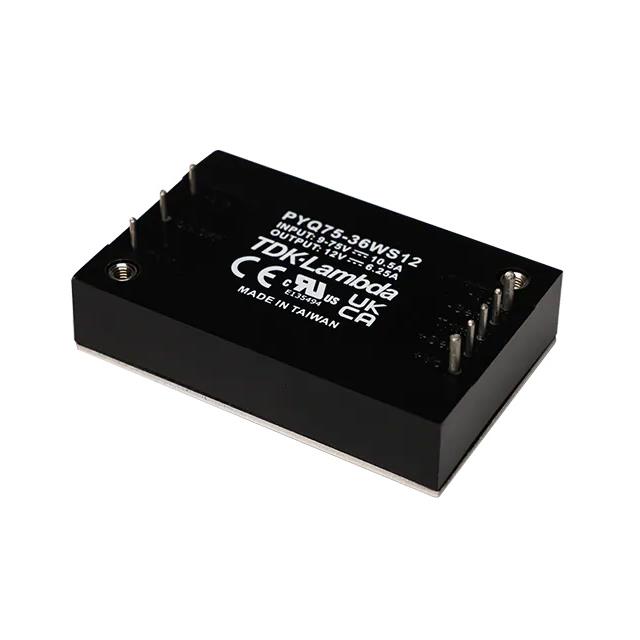

| Part Number | P78E12-1000 | PQC30-48-S15-O | PYQ75-36WS48 | PDQE20-Q24-D12-D |
| Manufacturer | CUI Inc. | CUI Inc. | TDK-Lambda | CUI Inc. |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | DC DC CONVERTER 12V 12W | DC-DC ISOLATED, 30 W, 36~75 VDC | DC DC CONVERTER 48V 75W | DC DC CONVERTER +/-12V 20W |
| Series | CUI Inc. | CUI Inc. | TDK-Lambda | CUI Inc. |
| Packaging | Tube | Tray | Tray | Tube |
