Product CatalogPart Number
PA4305.224NLT
Manufacturer
Pulse ElectronicsDescription
FIXED IND 220UH 450MA 2.756 OHM
Datasheet
DatasheetPackage
Nonstandard
In Stock
51,491 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PA4305.224NLT
PA4305.224NLT
lmages are for reference only.Payment Methods
Delivery Services
220 µH Unshielded Wirewound Inductor 450 mA 2.756Ohm Max Nonstandard
Quick Inquiry
PA4305.224NLT
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Pulse Electronics |
| Series | PA4305.XXXNL |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 220 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 450 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 2.756Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.248" L x 0.248" W (6.30mm x 6.30mm) |
| Height - Seated (Max) | 0.126" (3.20mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
 |

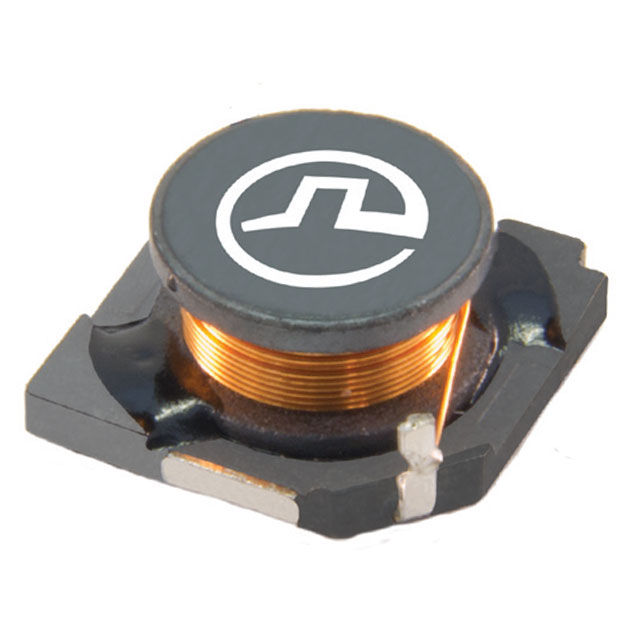

| Part Number | PA4305.224NLT | PA4305.102NLT | PA4305.103NLT | PA4305.104NLT |
| Manufacturer | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 220UH 450MA 2.756 OHM | FIXED IND 1UH 6.1A 38 MOHM SMD | FIXED IND 10UH 2.1A 153 MOHM SMD | FIXED IND 100UH 650MA 1.258 OHM |
| Series | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
PA4300.102NLT
Pulse Electronics
PA4300.103NLT
Pulse Electronics
PA4300.104NLT
Pulse Electronics
PA4300.122NLT
Pulse Electronics
PA4300.123NLT
Pulse Electronics
PA4300.124NLT
Pulse Electronics
PA4300.124NLT
Pulse Electronics
PA4300.153NLT
Pulse Electronics
PA4300.154NLT
Pulse Electronics
PA4300.182NLT
Pulse Electronics
PA4300.182NLT
Pulse Electronics
PA4300.183NLT
Pulse Electronics
PA4300.183NLT
Pulse Electronics
PA4300.184NLT
Pulse Electronics

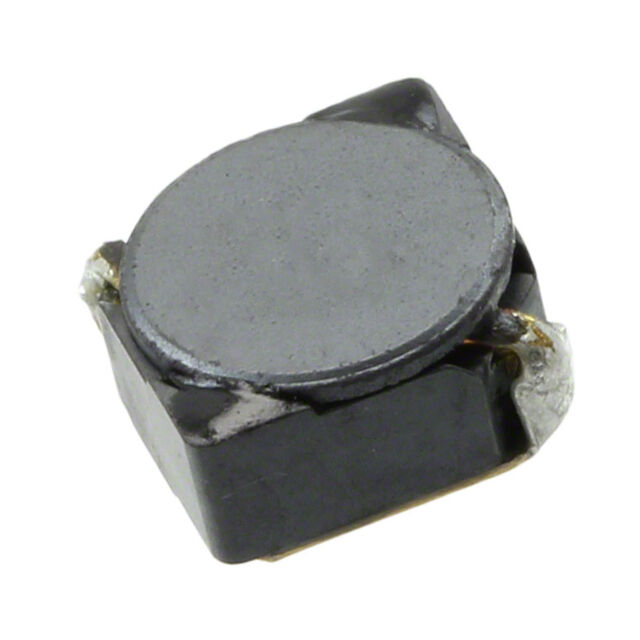

PA4300.222NLT
