PBLS1504Y,115

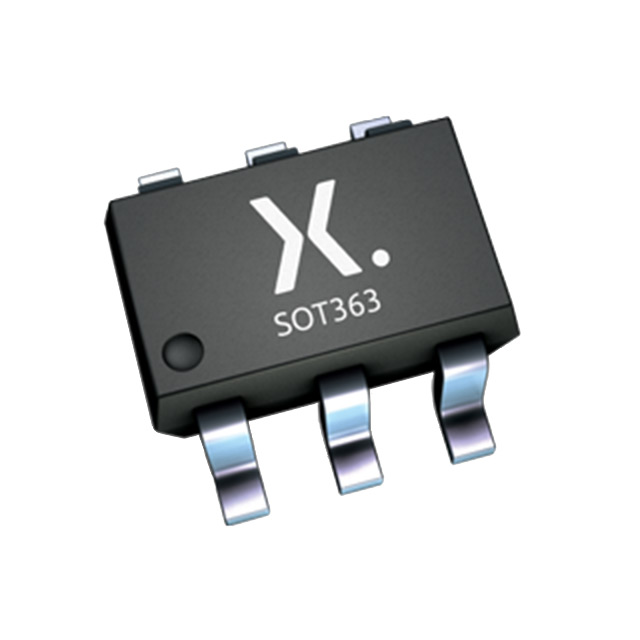

lmages are for reference only.PBLS1504Y,115
NEXPERIA PBLS1504Y - 15 V PNP BI
Datasheet6-TSSOP, SC-88, SOT-363
97,130 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pre-Biased Bipolar Transistor (BJT) 1 NPN Pre-Biased, 1 PNP 50V, 15V 100mA, 500mA 280MHz 300mW Surface Mount 6-TSSOP
PBLS1504Y,115
| Category | Discrete Semiconductor Products - Transistors - Bipolar BJT |
| Manufacturer | NXP Semiconductors |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Transistor Type | 1 NPN Pre-Biased, 1 PNP |
| Current - Collector (Ic) (Max) | 100mA, 500mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V, 15V |
| Resistor - Base (R1) | 22kOhms |
| Resistor - Emitter Base (R2) | 22kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 5mA, 5V / 150 @ 100mA, 2V |
| Vce Saturation (Max) @ Ib, Ic | 150mV @ 500µA, 10mA / 250mV @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 1µA, 100nA |
| Frequency - Transition | 280MHz |
| Power - Max | 300mW |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | 6-TSSOP |
| Base Product Number | PBLS1504 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
|
| Part Number | PBLS1504Y,115 | PBLS1501V,115 | PBLS1501Y,115 | PBLS1501Y,115 |
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TRANS PREBIAS 1NPN 1PNP 6TSSOP | TRANS PREBIAS 1NPN 1PNP SOT666 | NEXPERIA PBLS1501V - 15 V PNP BI | TRANS PREBIAS 1NPN 1PNP 6TSSOP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
