Product CatalogPart Number
PC740-3C-C1-220A
Manufacturer
Picker ComponentsDescription
RELAY GEN PURPOSE 3PDT 40A 220V
Datasheet
DatasheetPackage
-
In Stock
64,040 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PC740-3C-C1-220A
PC740-3C-C1-220A
lmages are for reference only.Payment Methods
Delivery Services
General Purpose Relay 3PDT (3 Form C) 220VAC Coil Chassis Mount
Quick Inquiry
PC740-3C-C1-220A
Specifications
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | Picker Components |
| Series | PC740 |
| Packaging | Bag |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Chassis Mount |
| Coil Voltage | 220VAC |
| Contact Form | 3PDT (3 Form C) |
| Contact Rating (Current) | 40 A |
| Switching Voltage | 250VAC, 28VDC - Max |
| Load - Max Switching | 10000VA, 1120W |
| Coil Current | 78 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Seal Rating | - |
| Coil Insulation | Class B |
| Must Operate Voltage | 192 VAC |
| Must Release Voltage | 66 VAC |
| Operate Time | 25 ms |
| Release Time | 15 ms |
| Operating Temperature | -55°C ~ 70°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | CUL, cURus, UL |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 2.82 kOhms |
| Base Product Number | PC740-3C |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

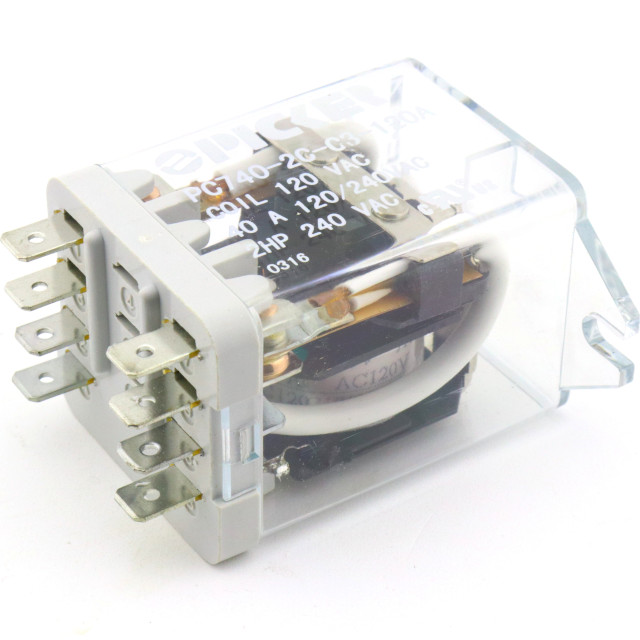

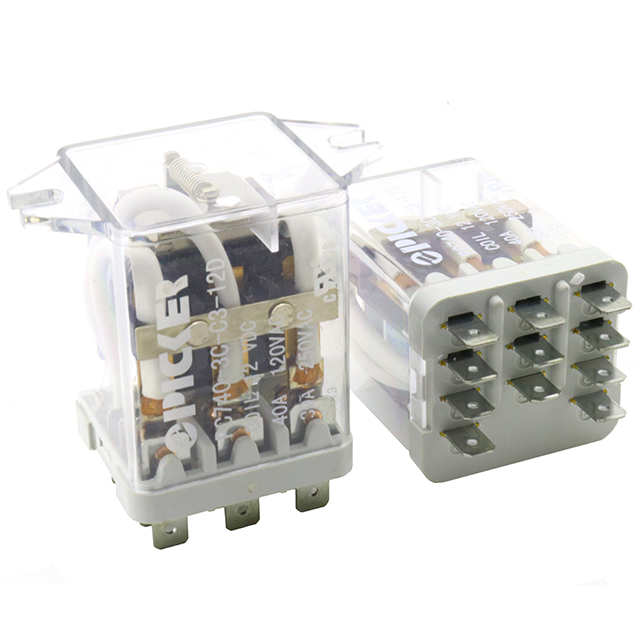

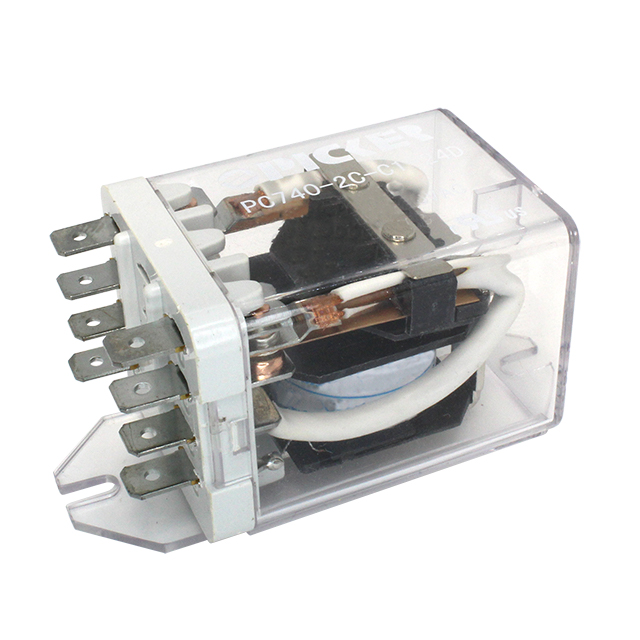

| Part Number | PC740-2C-C1-12D | PC740-2C-C3-120A | PC740-3C-C3-120A | PR26-9V-S-900-1C-EF |
| Manufacturer | Picker Components | Picker Components | Picker Components | Same Sky |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | RELAY GEN PURPOSE DPDT 40A 12V | RELAY GEN PURPOSE DPDT 40A 120V | RELAY GEN PURPOSE 3PDT 40A 120V | 31.8 X 26.9 X 19.1 MM, 9 V, 40 A |
| Series | Picker Components | Picker Components | Picker Components | Same Sky |
| Packaging | Bag | Bag | Bag | Box |
