PC817X2NSZ1B

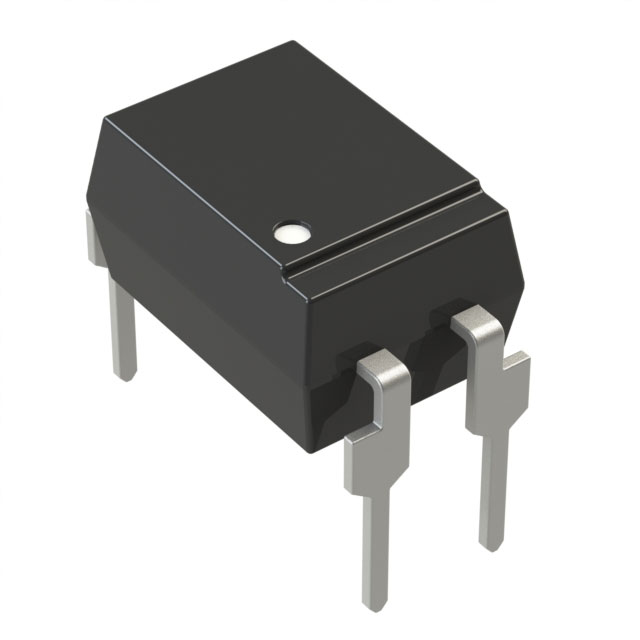

lmages are for reference only.PC817X2NSZ1B
OPTOISOLATOR 5KV TRANS DIP
Datasheet4-DIP (0.300", 7.62mm)
19,868 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Transistor Output 1 Channel 4-DIP
PC817X2NSZ1B
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | SHARP/Socle Technology |
| Series | - |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Number of Channels | 1 |
| Voltage - Isolation | - |
| Current Transfer Ratio (Min) | - |
| Current Transfer Ratio (Max) | - |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 4µs, 3µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 80V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 200mV |
| Operating Temperature | -30°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 4-DIP (0.300", 7.62mm) |
| Supplier Device Package | 4-DIP |
| Base Product Number | PC817X2 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PC817X2NSZ0F | PC817X2NSZW | PC817X | PC817X0J000F |
| Manufacturer | SHARP/Socle Technology | SHARP/Socle Technology | Sharp Microelectronics | Sharp Microelectronics |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | RoHS non-compliant | |
| Description | OPTOISOLATOR 5KV TRANS 4DIP | SHARP PHOTOCOUPLER | OPTOISOLATOR 5KV TRANS 4DIP | OPTOISOLATOR 5KV TRANS 4DIP |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
