PCJ-109D3MH-WG,000M

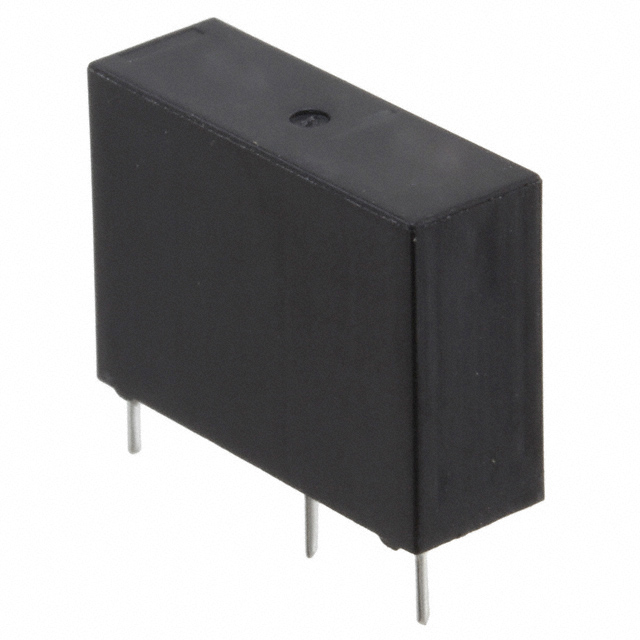

lmages are for reference only.PCJ-109D3MH-WG,000M
RELAY GEN PURPOSE SPST 5A 9V
Datasheet-
65,540 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPST-NO (1 Form A) 9VDC Coil Through Hole
PCJ-109D3MH-WG,000M
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | PCJ, OEG |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 9VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 5 A |
| Switching Voltage | 250VAC, 30VDC - Max |
| Load - Max Switching | 1250VA, 150W |
| Coil Current | 22.2 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | Class F |
| Must Operate Voltage | 6.75 VDC |
| Must Release Voltage | 0.45 VDC |
| Operate Time | 10 ms |
| Release Time | 4 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Nickel (AgNi) |
| Approval Agency | CQC, CSA, UR, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 405 Ohms |
| Base Product Number | PCJ-109 |
| Product Attribute | |
 |
 |
 |
| Part Number | PCJ-105D2M-WG,000 | PCJ-105D3M,301 | PCJ-105D3MH,301 | PCJ-112D3M,301 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY GEN PURPOSE SPST 5A 5V | RELAY GEN PURPOSE SPST 3A 5V | RELAY GEN PURPOSE SPST 3A 5V | RELAY GEN PURPOSE SPST 3A 12V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Tray | Bulk | Tray | Bulk |
