PCLAMP1211P.TGT
lmages are for reference only.PCLAMP1211P.TGT
TVS DIODE 13.5VWM 28VC SLP2018P6
Datasheet6-UFDFN Exposed Pad
24,675 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
28V Clamp 15A Ipp Tvs Diode Surface Mount SLP2018P6
PCLAMP1211P.TGT
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Semtech Corporation |
| Series | RailClamp® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 13.5V (Max) |
| Voltage - Breakdown (Min) | 14.5V |
| Voltage - Clamping (Max) @ Ipp | 28V |
| Current - Peak Pulse (10/1000µs) | 15A |
| Power - Peak Pulse | 5000W (5kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 1500pF @ 1MHz |
| Operating Temperature | 0°C ~ 85°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-UFDFN Exposed Pad |
| Supplier Device Package | SLP2018P6 |
| Base Product Number | PCLAMP1211 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |

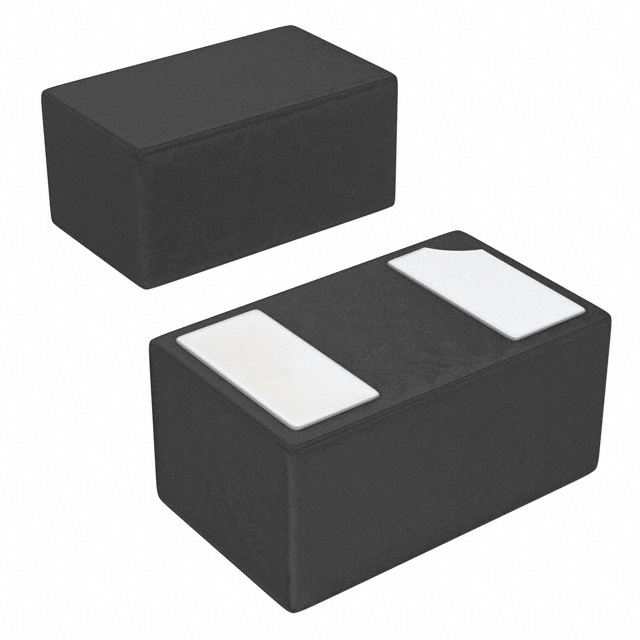

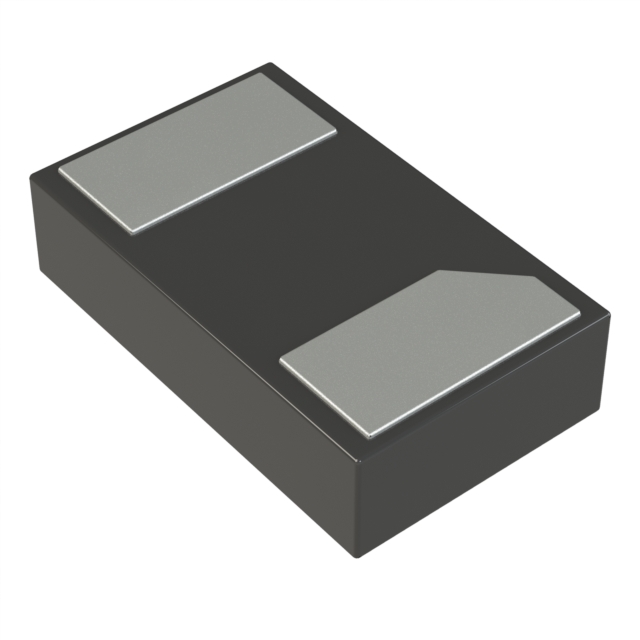

| Part Number | PCLAMP0511ZVTFT | PCLAMP1011P.TGT | PCLAMP1021P.TNT | PCLAMP1201P.TNT |
| Manufacturer | Semtech Corporation | Semtech Corporation | Semtech Corporation | Semtech Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | POWERCLAMP, 1-LINE 5V SLP1006P2X | PCLAMP 1-LINE 10V 190A 30KV SLP2 | 10V, 1-LINE SURGE PROTECTION | POWERCLAMP TVS DIODE |
| Series | Semtech Corporation | Semtech Corporation | Semtech Corporation | Semtech Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
