PD0200WJ20238BJ1
lmages are for reference only.PD0200WJ20238BJ1
CAP CER 2000PF 14KV R85 DISK
DatasheetDisk, Metal Fitting - Threaded
44,911 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2000 pF ±20% 14000V (14kV) Ceramic Capacitor R85 Disk, Metal Fitting - Threaded
PD0200WJ20238BJ1
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components |
| Series | P |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Capacitance | 2000 pF |
| Tolerance | ±20% |
| Voltage - Rated | 14000V (14kV) |
| Temperature Coefficient | R85 |
| Operating Temperature | -55°C ~ 100°C |
| Features | High Voltage |
| Ratings | - |
| Applications | RF, Microwave, High Frequency |
| Failure Rate | - |
| Mounting Type | Requires Holder |
| Package / Case | Disk, Metal Fitting - Threaded |
| Size / Dimension | 7.874" Dia (200.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Thickness (Max) | - |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PD0200WJ20233BJ1 | PD0200BJ25138BF1 | PD0200BJ80138BH1 | PD0200WF60233BJ1 |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |

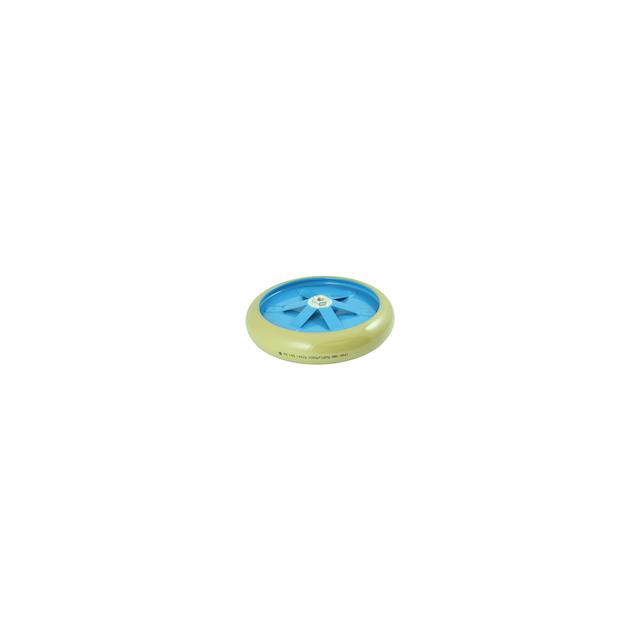

| Description | CAP CER 2000PF 14KV R85 DISK | CAP CER 250PF 15KV R7 DISK | CAP CER 800PF 15KV R42 DISK | CAP CER 6000PF 12KV R85 DISK |
| Series | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | |
| Packaging | Bulk | Bulk | Bulk |
