PD69220C-022419
lmages are for reference only.PD69220C-022419
IC POE PSE CTLR MCU 32LGA
Datasheet32-VFLGA Exposed Pad
57,948 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Power Over Ethernet Controller 48 Channel 802.3at (PoE+), 802.3af (PoE), 802.3bt 32-LGA (5x5)
PD69220C-022419
| Category | Integrated Circuits (ICs) - Power Management PMIC - Power Over Ethernet PoE Controllers |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Controller (PSE) |
| Number of Channels | 48 |
| Power - Max | 45 W |
| Internal Switch(s) | Yes |
| Auxiliary Sense | No |
| Standards | 802.3at (PoE+), 802.3af (PoE), 802.3bt |
| Voltage - Supply | 3V ~ 3.63V |
| Current - Supply | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFLGA Exposed Pad |
| Supplier Device Package | 32-LGA (5x5) |
| Base Product Number | PD69220 |
| Product Attribute | |
 |
|
 |

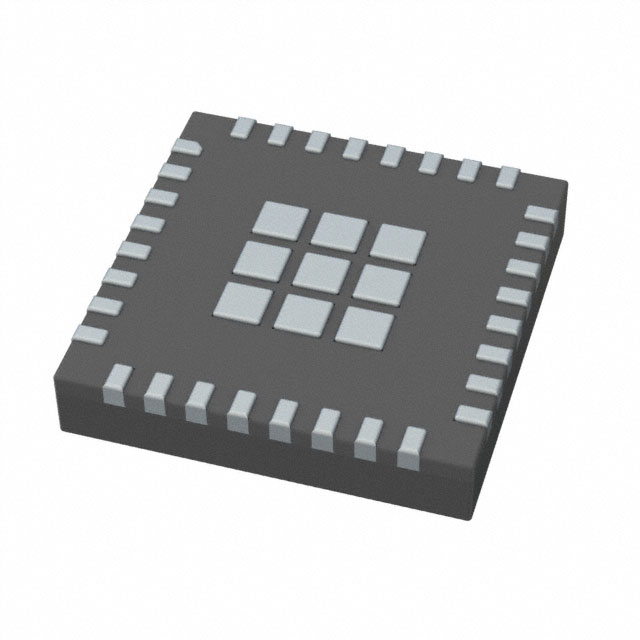

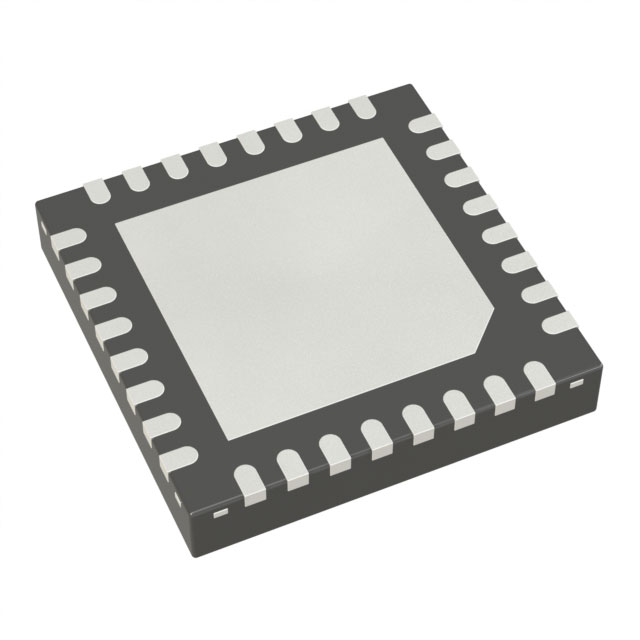

| Part Number | PD69220C-022419 | PD69220C-022419-TR | PD69220C-022419-TR | PD69220C-022619 |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IC POE PSE CTLR MCU 32LGA | IC POE PSE CTLR MCU 32LGA | IC POE PSE CTLR MCU 32LGA | MCU FOR PD692XX FAMILY, BASED PD |
| Series | - | - | - | - |
| Packaging | Tray | Tape & Reel (TR) | Tape & Reel (TR) | Tray |
