Product CatalogPart Number
PDAM240-18A-H
Manufacturer
TT Electronics/Power Partners Inc.Description
AC/DC CONVERTER 48V 160W
Datasheet
DatasheetPackage
-
In Stock
96,906 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PDAM240-18A-H
PDAM240-18A-H
lmages are for reference only.Payment Methods
Delivery Services
Open Frame AC DC Converters 1 Output 48V 90 ~ 264 VAC, 120 ~ 370 VDC Input
Quick Inquiry
PDAM240-18A-H
Specifications
| Category | Power Supplies - External/Internal (Off-Board) - AC DC Converters - |
| Manufacturer | TT Electronics/Power Partners Inc. |
| Series | PDAM240 (240W) |
| Packaging | Box |
| RoHS Status | RoHS Compliant |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC, 120 ~ 370 VDC |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 5 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 93.5% |
| Operating Temperature | -30°C ~ 70°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.10" L x 2.05" W x 1.09" H (104.1mm x 52.1mm x 27.6mm) |
| Approval Agency | CE, cURus |
| Minimum Load Required | No |
| Voltage - Output 5 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Power (Watts) | 160W (240W Forced Air) |
| Features | DC Input Capable, PFC, Standby Output, Universal Input |
| Standard Number | 60601-1; 60950-1 |
| Base Product Number | - |
| Current - Output 6 | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

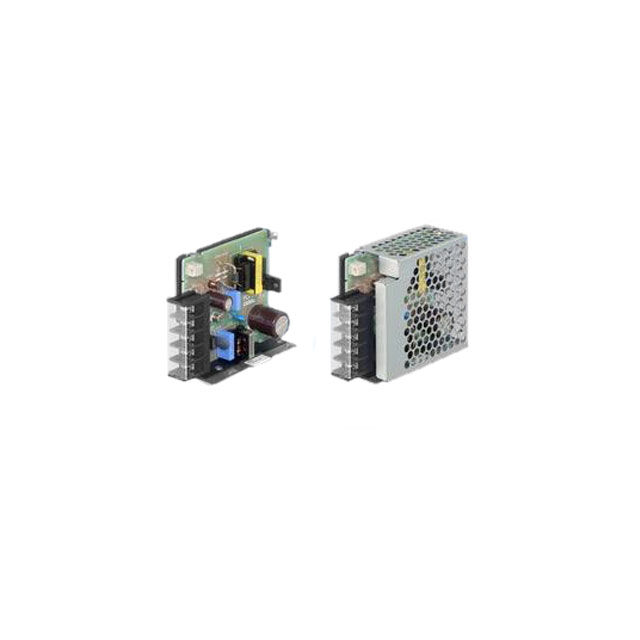

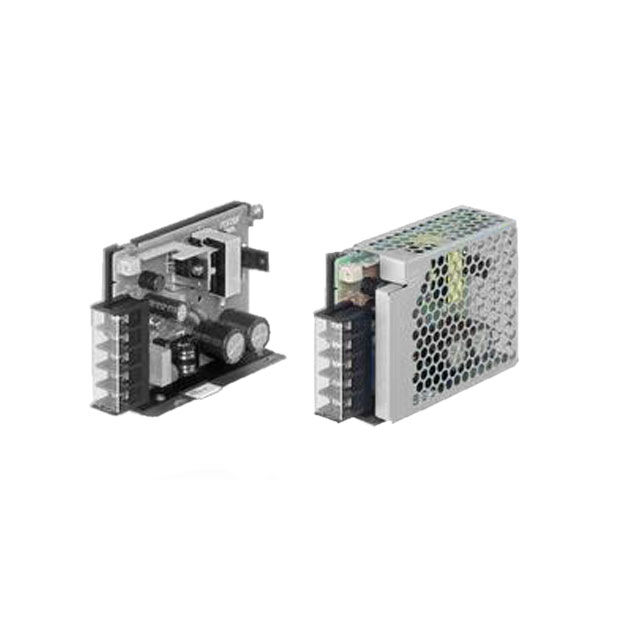

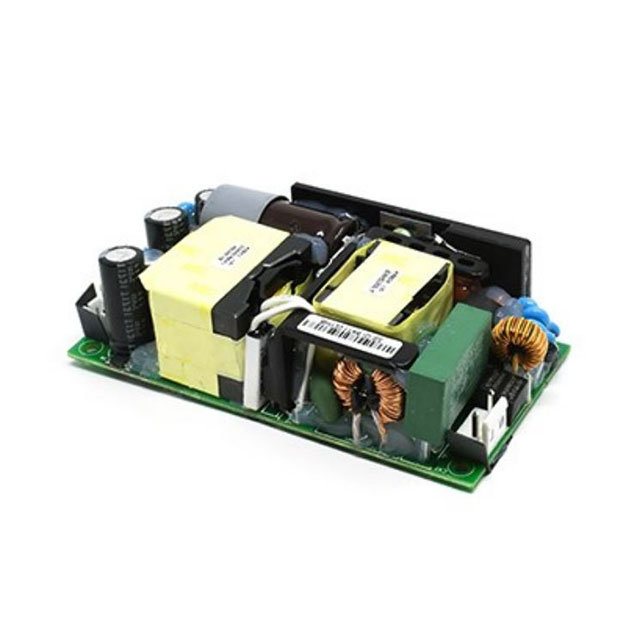

| Part Number | PDAM240-12A-H | PDAM240-14A-H | PDA15F-24-N | PDA30F-12-N |
| Manufacturer | TT Electronics/Power Partners Inc. | TT Electronics/Power Partners Inc. | Cosel USA, Inc. | Cosel USA, Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | ||
| Description | AC/DC CONVERTER 12V 160W | AC/DC CONVERTER 24V 160W | AC/DC PS (ENCLOSED TYPE) | AC/DC PS (ENCLOSED TYPE) |
| Series | PDAM240 (240W) | PDAM240 (240W) | PDA (15W) | PDA (30W) |
| Packaging | Box | Box | Bulk | Bulk |
