PDTC114YQBZ
lmages are for reference only.PDTC114YQBZ
TRANS PREBIAS PNP 50V 0.1A 3DFN
Datasheet3-XDFN Exposed Pad
18,343 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pre-Biased Bipolar Transistor (BJT) PNP - Pre-Biased 50 V 100 mA 180 MHz 340 mW Surface Mount, Wettable Flank DFN1110D-3
PDTC114YQBZ
| Category | Discrete Semiconductor Products - Transistors - Bipolar BJT |
| Manufacturer | Nexperia USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Transistor Type | PNP - Pre-Biased |
| Current - Collector (Ic) (Max) | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Resistor - Base (R1) | 10 kOhms |
| Resistor - Emitter Base (R2) | 47 kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 5mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | 100mV @ 250µA, 5mA |
| Current - Collector Cutoff (Max) | 100nA |
| Frequency - Transition | 180 MHz |
| Power - Max | 340 mW |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 3-XDFN Exposed Pad |
| Supplier Device Package | DFN1110D-3 |
| Base Product Number | PDTC114 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
|

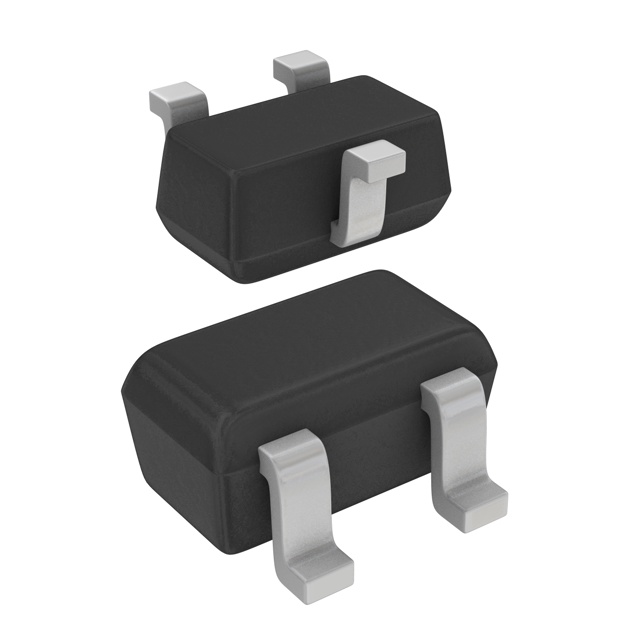

| Part Number | PDTC114YQB-QZ | PDTC114YE,115 | PDTC114YE,135 | PDTC114YEF,115 |
| Manufacturer | Nexperia USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TRANS PREBIAS NPN 50V 0.1A 3DFN | TRANS PREBIAS NPN 50V 0.1A SC75 | TRANS PREBIAS NPN 50V 0.1A SC75 | TRANS PREBIAS NPN 50V 0.1A SC89 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
