PE-0805CM330KTT

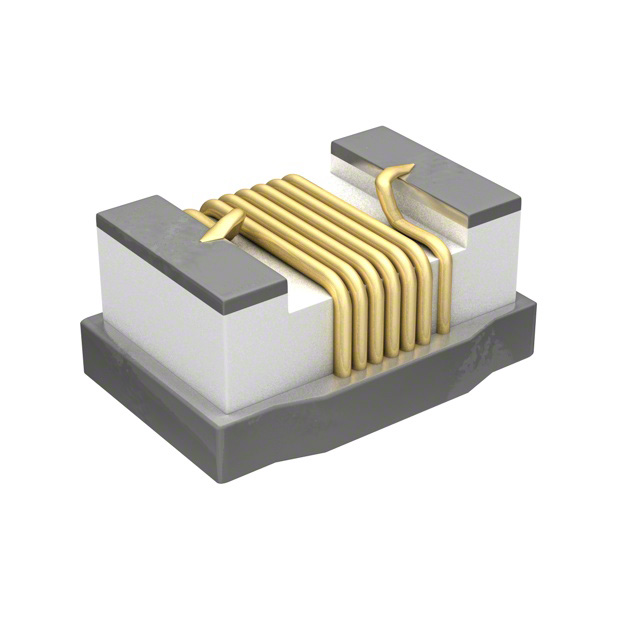

lmages are for reference only.PE-0805CM330KTT
FIXED IND 33NH 500MA 180MOHM SMD
Datasheet0805 (2012 Metric)
93,282 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
33 nH Unshielded Drum Core, Wirewound Inductor 500 mA 180mOhm Max 0805 (2012 Metric)
PE-0805CM330KTT
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Pulse Electronics |
| Series | 0805CM |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 33 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 500 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 180mOhm Max |
| Q @ Freq | 58 @ 500MHz |
| Frequency - Self Resonant | 1.8GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) |
| Size / Dimension | 0.090" L x 0.066" W (2.29mm x 1.68mm) |
| Height - Seated (Max) | 0.062" (1.58mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PE-0805CM330GTT | PE-0805CM330JTT | PE-0805CM030JTT | PE-0805CM030KTT |
| Manufacturer | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| RoHS Status | ||||
| Description | FIXED IND 33NH 500MA 180MOHM SMD | FIXED IND 33NH 500MA 180MOHM SMD | FIXED IND 3.3NH 600MA 80MOHM SMD | FIXED IND 3.3NH 600MA 80MOHM SMD |
| Series | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
