PE-1008CM222KTT

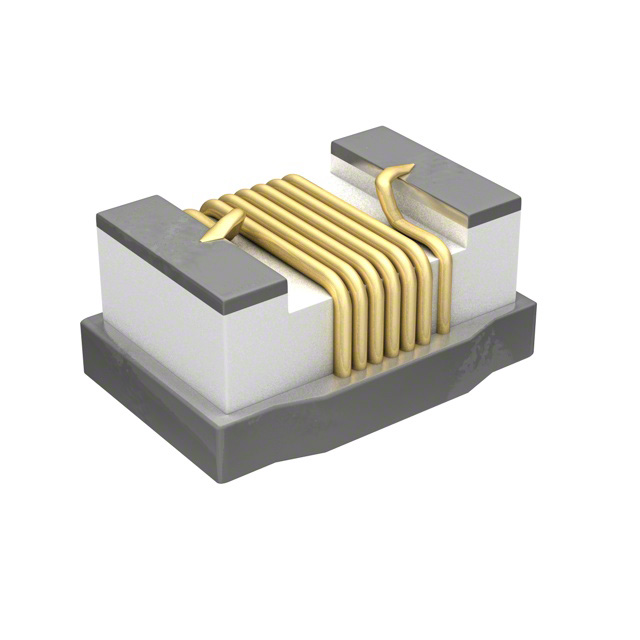

lmages are for reference only.PE-1008CM222KTT
FIXED IND 2.2UH 150MA 5.85OHM SM
Datasheet1008 (2520 Metric)
55,552 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2.2 µH Unshielded Drum Core, Wirewound Inductor 150 mA 5.85Ohm Max 1008 (2520 Metric)
PE-1008CM222KTT
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Pulse Electronics |
| Series | 1008CM |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 2.2 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 150 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 5.85Ohm Max |
| Q @ Freq | 30 @ 25MHz |
| Frequency - Self Resonant | 80MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 10 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) |
| Size / Dimension | 0.115" L x 0.110" W (2.92mm x 2.79mm) |
| Height - Seated (Max) | 0.090" (2.29mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
|
 |
| Part Number | PE-1008CM222GTT | PE-1008CM222JTT | PE-1008CM222KTT | PE-1008CM100GTT |
| Manufacturer | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| RoHS Status | ROHS3 Compliant | |||
| Description | FIXED IND 2.2UH 150MA 5.85OHM SM | FIXED IND 2.2UH 150MA 5.85OHM SM | FIXED IND 2.2UH 150MA 5.85OHM SM | FIXED IND 10NH 1A 90 MOHM SMD |
| Series | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
