PE-1806PFB600ST
lmages are for reference only.PE-1806PFB600ST
FERRITE BEAD 60 OHM 1806 1LN
Datasheet1806 (4516 Metric)
84,298 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
60 Ohms @ 100 MHz 1 Power Line Ferrite Bead 1806 (4516 Metric) 6A 10mOhm
PE-1806PFB600ST
| Category | Filters - Ferrite Beads and Chips - |
| Manufacturer | Pulse Electronics |
| Series | PFB |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Filter Type | Power Line |
| Number of Lines | 1 |
| Impedance @ Frequency | 60 Ohms @ 100 MHz |
| Current Rating (Max) | 6A |
| DC Resistance (DCR) (Max) | 10mOhm |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Package / Case | 1806 (4516 Metric) |
| Mounting Type | Surface Mount |
| Height (Max) | 0.071" (1.80mm) |
| Size / Dimension | 0.177" L x 0.063" W (4.50mm x 1.60mm) |
| Features | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

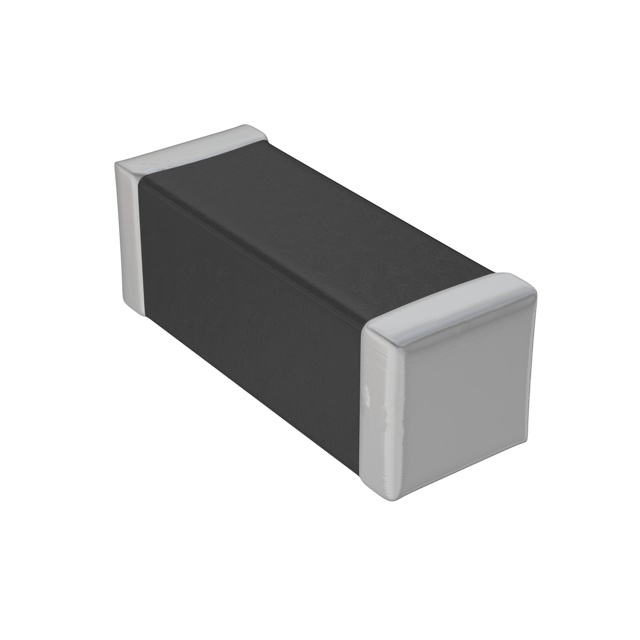

| Part Number | PE-1806PFB720ST | FBMH1608HM101-TV | BKP2125HS600-TV | LMMGA201208T221RG |
| Manufacturer | Pulse Electronics | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | FERRITE BEAD 72 OHM 1806 1LN | FERRITE BEAD 100 OHM 0603 1LN | FERRITE BEAD 60 OHM 0805 1LN | FERRITE BEAD 220 OHM 0805 1LN |
| Series | PFB | FB | BK | LMMG |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
